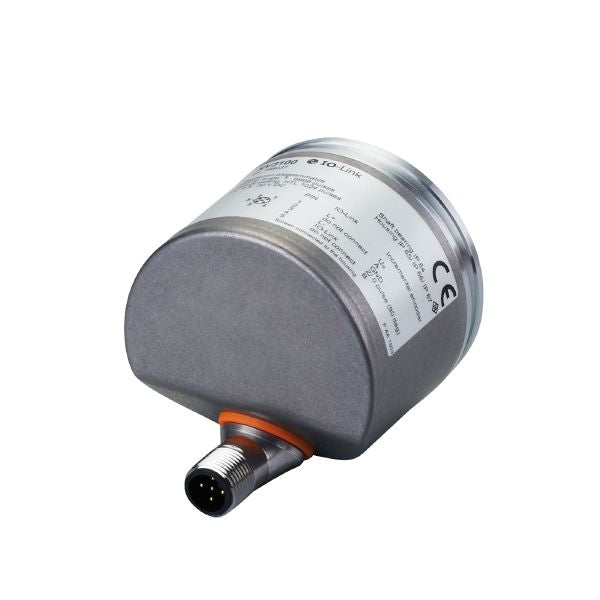

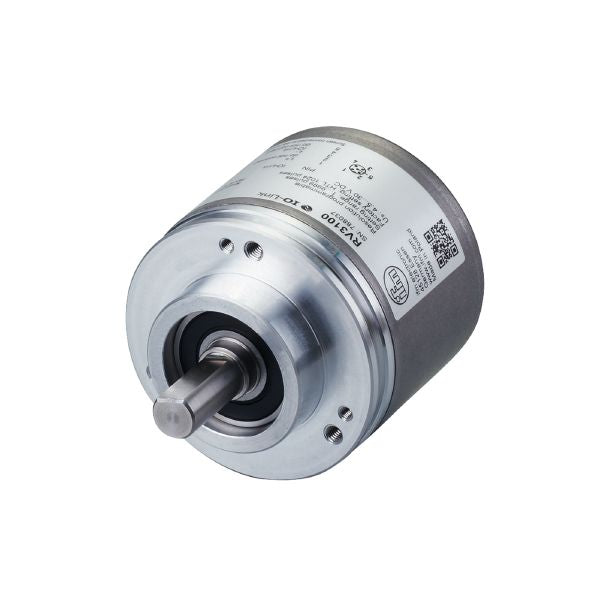

Ifm RV3100 Incremental Encoder With Solid Shaft
Country Of Origin:
| Resolution | 1...10000; (configurable; Factory setting: 1024) resolution |
|---|---|
| Communication interface | IO-Link |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 10 |
| Function principle | incremental |
|---|---|
| Detection system | magnetic |
| Operating voltage [V] | 4.75...30 DC |
|---|---|
| Current consumption [mA] | < 150 |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | 0.5 |
| Max. revolution electrical [U/min] | 12000 |
| Electrical design | HTL/TTL | |
|---|---|---|
| Max. current load per output [mA] | 50 | |
| Switching frequency [kHz] | 1000 | |
| Factory setting |
|
|
| Short-circuit protection | yes | |
| Phase difference A und B [°] | 90 |
| Resolution | 1...10000; (configurable; Factory setting: 1024) resolution |
|---|
| Accuracy [°] | 0.1 |
|---|
| Parameter setting options | Resolution; Direction of rotation; HTL; TTL |
|---|
| Communication interface | IO-Link |
|---|---|
| Transmission type | COM2 (38,4 kBaud) |
| IO-Link revision | 1.1 |
| SIO mode | yes |
| Min. process cycle time [ms] | 2.3 |
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 95; (Condensation not permissible) |
| Protection | IP 65; IP 66; (on the housing: IP 67; on the shaft: IP 64) |
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 292 |
| Weight [g] | 392 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 79.5 | |
| Material | flange: aluminum; housing: stainless steel (1.4521 / 444) | |
| Max. revolution, mechanical [U/min] | 12000 | |
| Max. starting torque [Nm] | 1 | |
| Reference temperature torque [°C] | 20 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 10 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 60 | |
| Fixing flange | Clamping flange |
| IO-Link | Connector: 1 x M12, radial, can also be used axially; coding: A; Moulded body: stainless steel (1.4401 / 316); Maximum cable length: 100 m; (IO-Link: max. 20 m) |
|---|
|
Pulse diagram
|
|
|---|
