Ifm | SKU:
IF-RM7011-E

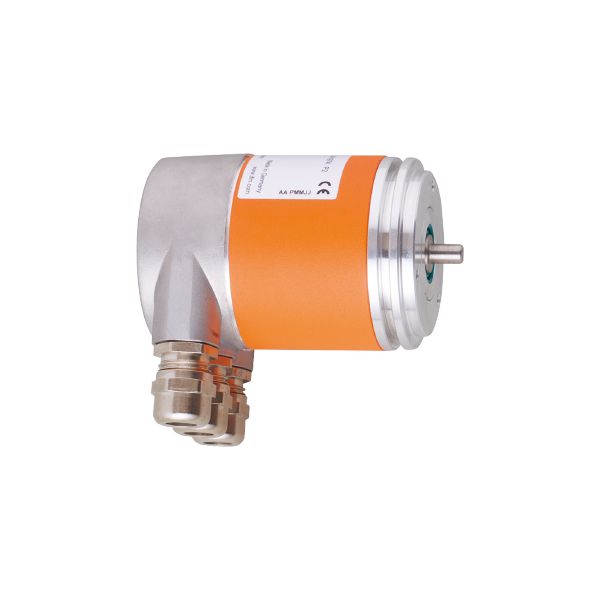

Ifm RM7011 Absolute Multiturn Encoder With Solid Shaft
$993.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm RM7011 Absolute Multiturn Encoder With Solid Shaft is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm RM7011 Absolute Multiturn Encoder With Solid Shaft
$993.33 USD
Unit price
/
Unavailable
Product characteristics
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|---|
| Communication interface | CAN |
| Shaft design | solid shaft |
| Shaft diameter [mm] | 6 |
Application
| Function principle | absolute |
|---|---|
| Revolution type | multiturn |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 230; ((10 V DC); 100 (24 V DC)) |
| Reverse polarity protection | yes |
Outputs
| Code | binary |
|---|
Measuring/setting range
| Resolution | 8192 steps; 4096 revolutions; 25 bit |
|---|
Software / programming
| Parameter setting options | CAN parameter; scaling; preset; Baud rate; Direction of rotation; Node ID |
|---|---|
| Addressing | address selector switch; 0...126 |
Interfaces
| Communication interface | CAN |
|---|
CAN
| Protocol | CANopen | ||
|---|---|---|---|
| Factory settings |
|
||
| Version | DSP - 406 V3.1; DS 301 V4.02; DS 306 V2.0 |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Max. relative air humidity [%] | 98 |
| Protection | IP 65; (on the housing: IP 65; on the shaft: IP 64) |
Tests / approvals
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
||
| MTTF [years] | 13 |
Mechanical data
| Weight [g] | 567.5 | |
|---|---|---|
| Dimensions [mm] | Ø 58 / L = 94 | |
| Material | aluminum | |
| Max. revolution, mechanical [U/min] | 6000 | |
| Shaft design | solid shaft | |
| Shaft diameter [mm] | 6 | |
| Shaft material |
|
|
| Max. shaft load axial (at the shaft end) [N] | 40 | |
| Max. shaft load radial (at the shaft end) [N] | 110 | |
| Fixing flange | Synchro-flange |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Terminal strip in the terminal chamber: |
