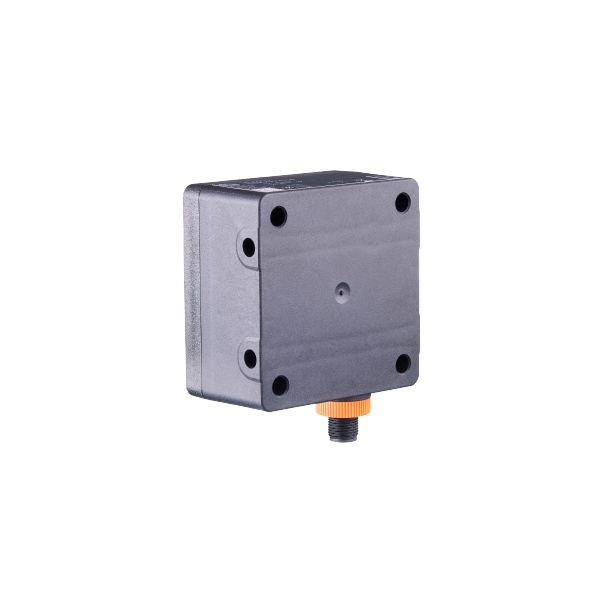

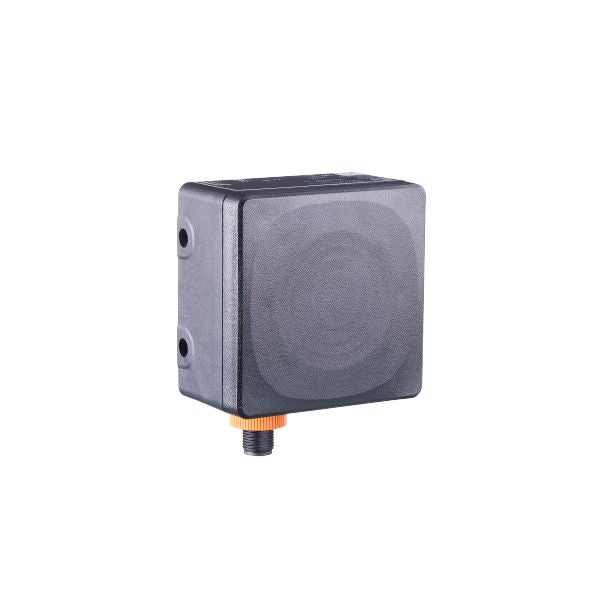

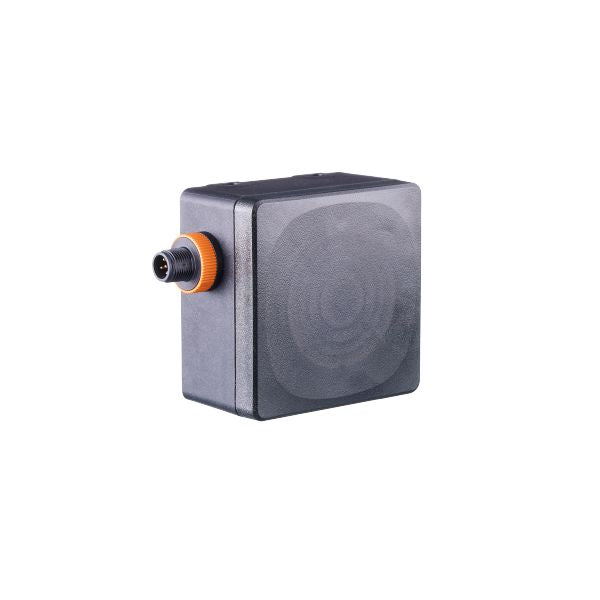

Ifm R1D102 Radar Distance Sensor
Country Of Origin:
| Communication interface | IO-Link |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 80 x 80 x 45 |
| Electrical design | PNP/NPN; (configurable) |
|---|---|
| Output function | normally open / closed; (configurable) |
| Radio approval for | USA; Canada |
|---|
| Operating voltage [V] | 10...30 DC; (to SELV/PELV ; energy-limited circuits according to IEC/UL 61010-1 3rd ed. cl. 9.4) |
|---|---|
| Current consumption [mA] | < 300; (mean value: 150 mA) |
| Power consumption [W] | 21; (maximum) |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 1000 |
| Operating frequency [GHz] |
|
|
|---|---|---|
| Radiated peak power EIRP [dBm] |
|
| Total number of inputs and outputs | 3 |
|---|
| Inputs |
|
|---|
| Total number of outputs | 2 | ||||
|---|---|---|---|---|---|
| Output signal |
|
||||
| Short-circuit protection | yes | ||||
| Type of short-circuit protection | yes (non-latching) | ||||
| Overload protection | yes |
| Analog current output [mA] | 4...20, invertible; (scalable) |
|---|---|
| Max. load [Ω] | 500; (< 250 Ω: Ub 16...30 V DC; 250...500 Ω: Ub 18...30 V DC) |
| Analog voltage output [V] | 0...10, invertible; (scalable) |
| Min. load [Ω] | 2000 |
| Electrical design | PNP/NPN; (configurable) |
|---|---|
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Range [m] | 0.1...35; (referred to a 10 cm corner reflector) | ||||
|---|---|---|---|---|---|
| Angle of aperture cylindrical [°] |
|
| Measuring range [m] | 0.1...35; (see diagram:) |
|---|---|
| Sampling rate [Hz] | 20...100 |
| Hysteresis [mm] | 5; (configurable) |
|---|---|
| Temperature coefficient analog output [% of the span / 10 K] | ± 0,1 |
| Repeatability analog output [% of the span] |
|
|
|---|---|---|
| Linearity error of analog output [% of the span] |
|
|
| Precision analog output [% of the span] |
|
| Parameter setting options | only via IO-Link |
|---|
| Communication interface | IO-Link | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM3 (230,4 kBaud) | ||||||||||||||||
| IO-Link revision | 1.1 | ||||||||||||||||
| SDCI standard | IEC 61131-9 | ||||||||||||||||
| Profiles |
|
||||||||||||||||
| SIO mode | yes | ||||||||||||||||
| Required master port class | A | ||||||||||||||||
| Min. process cycle time [ms] | 3.2 | ||||||||||||||||
| IO-Link process data (cyclical) |
|
||||||||||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; number of trigger events; internal temperature; ROI setting | ||||||||||||||||
| Supported DeviceIDs |
|
