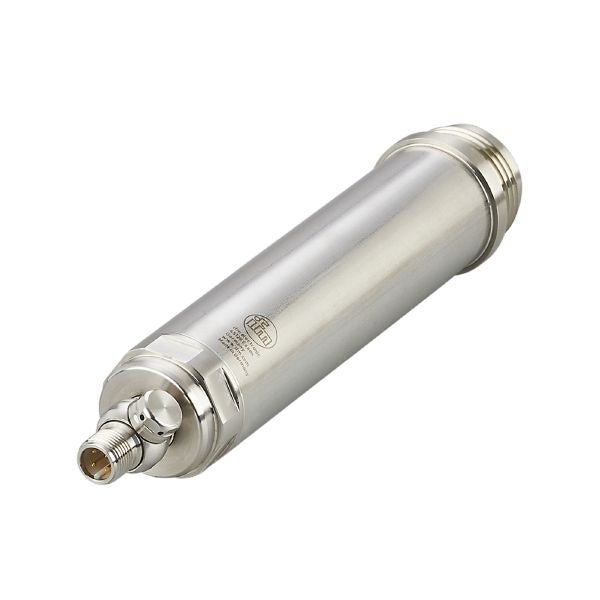

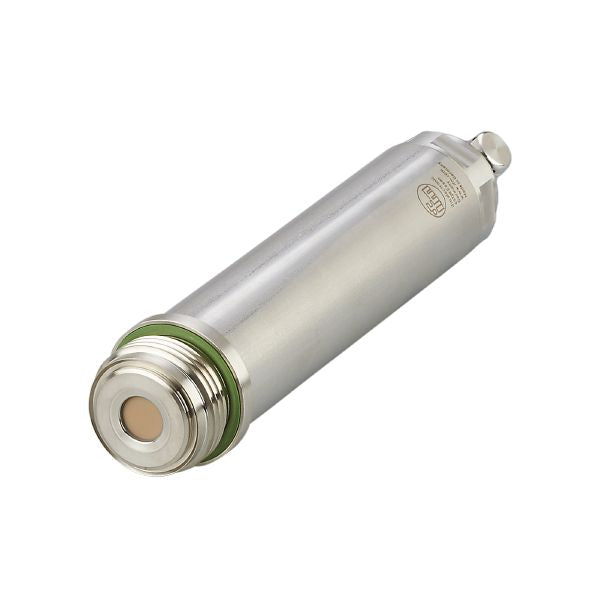

Ifm PY2006 Flush Pressure Sensor
Country Of Origin:
| Number of inputs and outputs | Number of analog outputs: 1 | |||
|---|---|---|---|---|
| Measuring range |
|
|||
| Process connection | threaded connection G 1 external thread Aseptoflex Vario |
| System | gold-plated contacts | |||
|---|---|---|---|---|
| Measuring element | ceramic-capacitive pressure measuring cell | |||
| Application | flush mountable for the food and beverage industry | |||
| Media | viscous media and liquids with suspended particles; liquids and gases | |||
| Medium temperature [°C] | -25...85; (125: < 1 h) | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Vacuum resistance [mbar] | -1000 | |||
| Type of pressure | relative pressure | |||
| No dead space | yes | |||
| MAWP (for applications according to CRN) [bar] | 20 |
| Operating voltage [V] | 18...30 DC |
|---|---|
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | III |
| Reverse polarity protection | yes |
| Integrated watchdog | yes |
| Current consumption [mA] | 3.5...21.5 |
|---|---|
| Power-on delay time [s] | 1 |
| Current consumption [mA] | < 45 |
|---|---|
| Power-on delay time [s] | 0.5 |
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Output signal | analog signal; (configurable) |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20; (scalable) |
| Max. load [Ω] | 700; (Ub = 24 V; (Ub - 9 V) / 21.5 mA) |
| Short-circuit proof | yes |
| Overload protection | yes |
| Measuring range |
|
|||
|---|---|---|---|---|
| Analog start point |
|
|||
| Analog end point |
|
|||
| In steps of |
|
|||
| Factory setting |
|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K; Turn down 1:1) | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Characteristics deviation [% of the span] | < ± 0,2; (linearity incl. hysteresis and repeatability, limit value setting to DIN EN IEC 62828-1) | ||||||||
| Linearity deviation [% of the span] | < ± 0,15; (Turn down 1:1) | ||||||||
| Hysteresis deviation [% of the span] | < ± 0,15; (Turn down 1:1) | ||||||||
| Long-term stability [% of the span] | < ± 0,1; (Turn down 1:1; per year) | ||||||||
| Total deviation over temperature range |
|
||||||||
| Notes on the accuracy / deviation | for further details see section Diagrams and graphs |
| Damping for the analog output dAA [s] | 0...4 |
|---|
| Step response time analog output [ms] | 30 |
|---|
| Step response time analog output [ms] | 7 |
|---|
| Communication interface | IO-Link | ||
|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||
| IO-Link revision | 1.1 | ||
| Profiles | Digital Measuring Sensor (0x000A), Identification and Diagnosis (0x4000) | ||
| SIO mode | no | ||
| Required master port class | A | ||
| Process data analog | 3 | ||
| Min. process cycle time [ms] | 3.2 | ||
| Supported DeviceIDs |
|
