Ifm  |  SKU: IF-PT9550-E  |  Barcode: DOES NOT APPLY

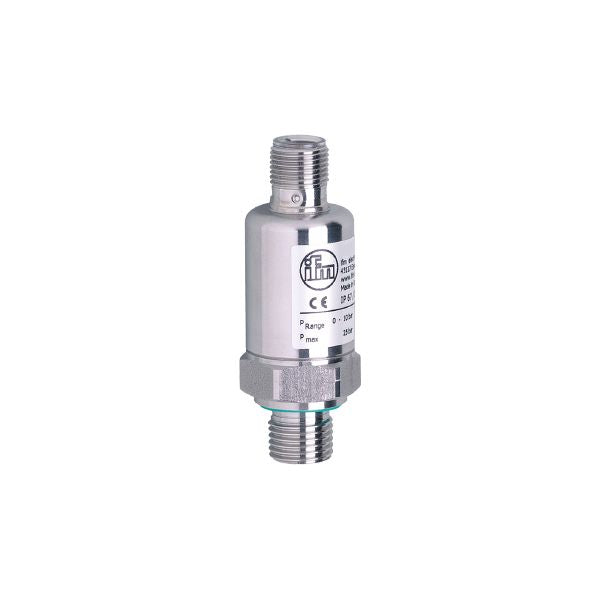

Ifm PT9550 Pressure Transmitter

$261.11 USD
Shipping calculated at checkout.

Ifm PT9550 Pressure Transmitter is backordered and will ship as soon as it is back in stock.


As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.

Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.

Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.

Subscribe to our newsletter

Sign up for exclusive offers.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin:

Product characteristics
Number of inputs and outputs Number of analog outputs: 1
Measuring range
0...400 bar 0...5800 psi 0...40 MPa
Process connection threaded connection G 1/4 external thread
Application
Application for mobile applications
Media liquids and gases
Medium temperature [°C] -25...90; (on request: -40...100 °C)
Min. bursting pressure
1600 bar 23200 psi 160 MPa
Pressure rating
600 bar 8700 psi 60 MPa
Type of pressure relative pressure
Electrical data
Operating voltage [V] 16...36 DC
Current consumption [mA] < 6
Min. insulation resistance [MΩ] 100; (80 V DC)
Protection class III
Reverse polarity protection yes
Inputs / outputs
Number of inputs and outputs Number of analog outputs: 1
Outputs
Total number of outputs 1
Output signal analog signal
Number of analog outputs 1
Analog voltage output [V] 0...10
Min. load resistance [Ω] 2000
Measuring/setting range
Measuring range
0...400 bar 0...5800 psi 0...40 MPa
Accuracy / deviations
Repeatability [% of the span] < ± 0,1; (with temperature fluctuations < 10 K)
Characteristics deviation [% of the span] < ± 1,0; (incl. drift due to tightening torque, zero and span error)
Linearity deviation [% of the span] < ± 0,25 (BFSL) / < ± 0,5 (LS)
Hysteresis deviation [% of the span] < ± 0,2
Long-term stability [% of the span] < ± 0,1; (per 6 months)
Temperature coefficient zero point [% of the span / 10 K] < ± 0,1; (-25...90 °C)
Temperature coefficient span [% of the span / 10 K] < ± 0,1; (-25...90 °C)
Reaction times
Step response time analog output [ms] 8
Operating conditions
Ambient temperature [°C] -25...90
Storage temperature [°C] -40...100
Protection IP 67; IP 69K
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
noise immunity according to the automotive directive 1995/54/EC, 2004/104 EC, 2005/83/EC
ISO 11452-2 100 V/m
ISO 11452-4 100 mA / severity level 4
ISO 7637-2 severity level 4
radiation of interference CISPR 25
EN 61000-6-1
EN 61000-6-4
Shock resistance
DIN IEC 68-2-27 50 g (11 ms)
Vibration resistance
DIN IEC 68-2-6 20 g (10...2000 Hz)
MTTF [years] 1069
Pressure equipment directive sound engineering practice; can be used for group 2 fluids; group 1 fluids on request
Mechanical data
Weight [g] 83
Material stainless steel (1.4404 / 316L); PA
Materials (wetted parts) stainless steel (1.4404 / 316L); FKM
Min. pressure cycles 50 million
Process connection threaded connection G 1/4 external thread
Restrictor element integrated yes
Remarks
Remarks
BFSL = Best Fit Straight Line
LS = limit value setting
Pack quantity 1 pcs.
Electrical connection
Connection Connector: 1 x M12; coding: A
