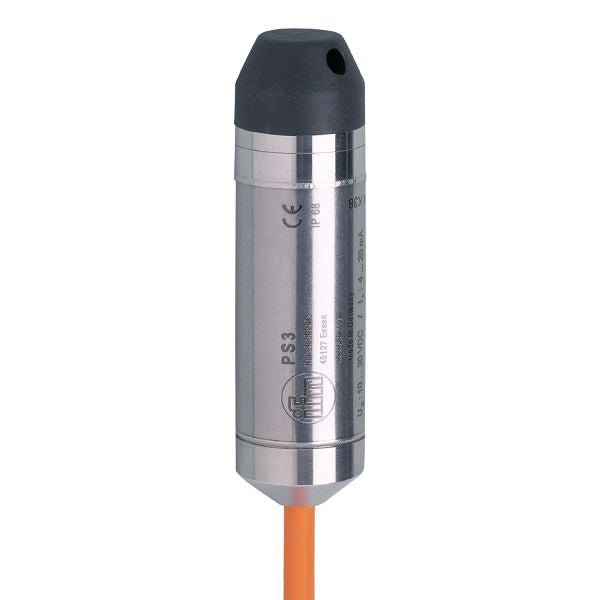

Ifm PS3427 Hydrostatic Submersible Pressure Transmitter
$920.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm PS3427 Hydrostatic Submersible Pressure Transmitter is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm PS3427 Hydrostatic Submersible Pressure Transmitter
$920.00 USD
Unit price
/
Unavailable
Product characteristics
| Number of inputs and outputs | Number of analog outputs: 1 | |||||
|---|---|---|---|---|---|---|
| Measuring range |
|
Application
| Design | with capillary tube for pressure compensation | |||
|---|---|---|---|---|
| Application | for industrial applications | |||
| Media | Liquids | |||
| Medium temperature [°C] | -10...50 | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure |
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
| Measuring principle | hydrostatic |
Inputs / outputs
| Number of inputs and outputs | Number of analog outputs: 1 |
|---|
Outputs
| Total number of outputs | 1 |
|---|---|
| Output signal | analog signal |
| Number of analog outputs | 1 |
| Analog current output [mA] | 4...20 |
| Max. load [Ω] | 700; (Ub = 24 V; (Ub - 10 V) / 20 mA) |
| Short-circuit protection | yes |
Measuring/setting range
| Measuring range |
|
|---|
Accuracy / deviations
| Repeatability [% of the span] | < 0,1; (with temperature fluctuations < 10 K) |
|---|---|
| Characteristics deviation [% of the span] | < 0,5 (BFSL) / 1; (incl. linearity, zero and span error (limit value setting)) |
| Linearity deviation [% of the span] | < 0,2 (BFSL) |
| Long-term stability [% of the span] | < 0,2; (per year) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,2; (0...50 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,2; (0...50 °C) |
Operating conditions
| Ambient temperature [°C] | -10...50 |
|---|---|
| Storage temperature [°C] | -30...80 |
| Protection | IP 68 |
Tests / approvals
| MTTF [years] | 403 |
|---|---|
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
Mechanical data
| Weight [g] | 1246 |
|---|---|
| Material | stainless steel (1.4571/316Ti ); PA |
anzeigen-bedienelemente
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 15 m, PUR, Ø 7.5 mm; Core insulation:, PVC |
|---|
