Ifm | SKU: SEN-2039-E | Barcode: 4021179274012

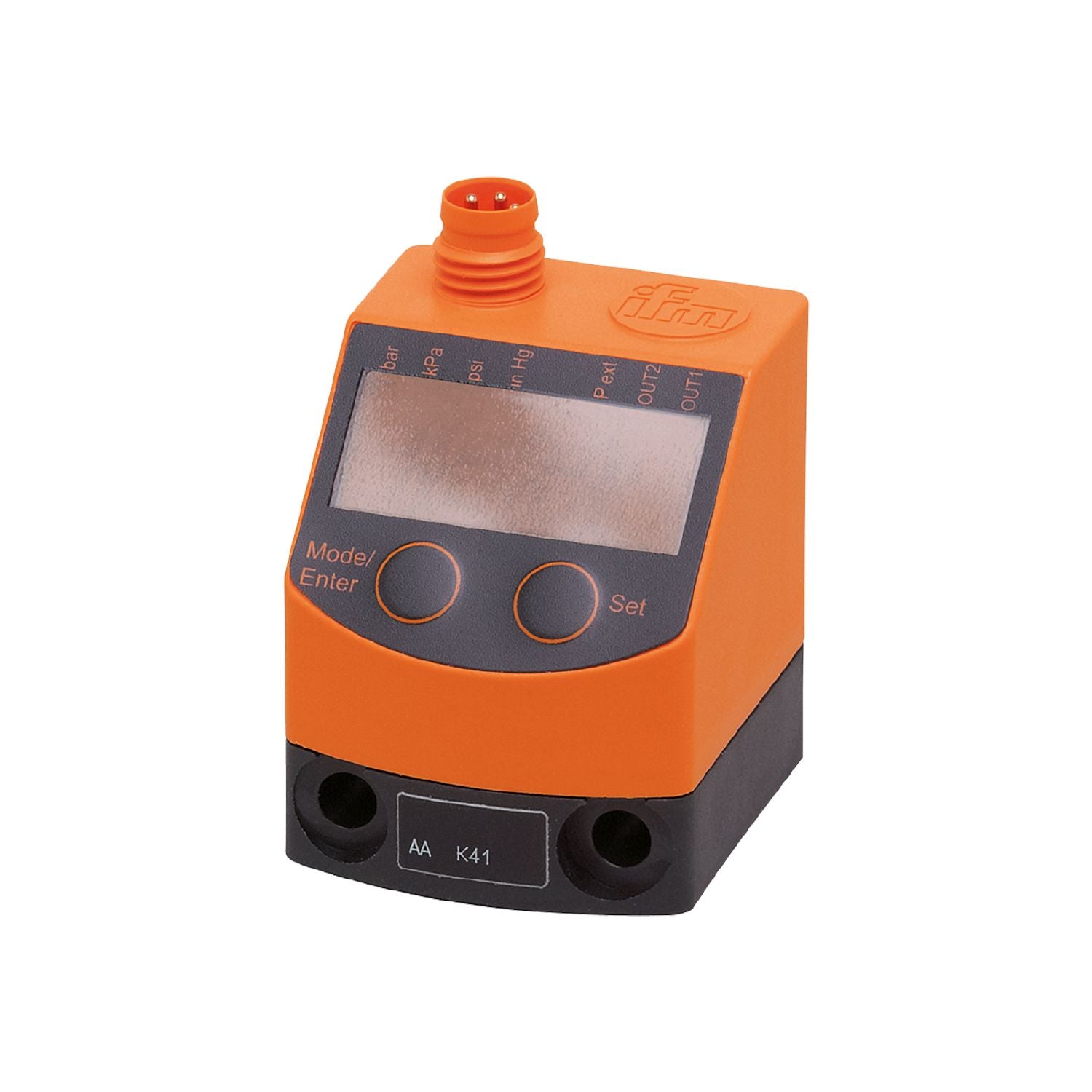

Ifm PQ3834 Pressure Sensor For Pneumatics

$276.33 USD

Shipping calculated at checkout.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Being a Canadian company, our U.S. shipments are subject to tariffs. Under DDP (Delivered Duty Paid), all applicable tariffs and fees are calculated and paid upfront at checkout.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin: Romania

Description:

Number Of Digital Outputs: 1
Number Of Analogue Outputs: 1
Measuring Range: -1...10 bar / -15...145 psi / -30...296 inHg / -100...1000 kPa
Process Connection: Threaded Connection G 1/8 Internal Thread, Internal Thread M5
Special Feature: Gold-Plated Contacts
Application: For Industrial Applications
Conditionally Suitable For: Other Media On Request
Medium Temperature: 0...60°C
Min. Burst Pressure: 30 bar / 435 psi / 886 inHg / 3000 kPa
Note On Min. Burst Pressure: Max. Overpressure On Second Pressure Connection: 12 bar / 1200 kPa / 174 PSI / 354.4 inHg / 1.2 MPa
Pressure Rating: 20 bar / 290 psi / 591 inHg / 2000 kPa
Vacuum Resistance: -1000 mbar / -0.1 MPa
Type Of Pressure: Relative Pressure; Differential Pressure; Vacuum
Operating Voltage: 18...32 DC V (To SELV/PELV)
Current Consumption: < 50 mA
Min. Insulation Resistance: 100 MΩ (500 V DC)
Protection Class: III
Reverse Polarity Protection: Yes
Power-On Delay Time: 0.5 s
Integrated Watchdog: Yes
