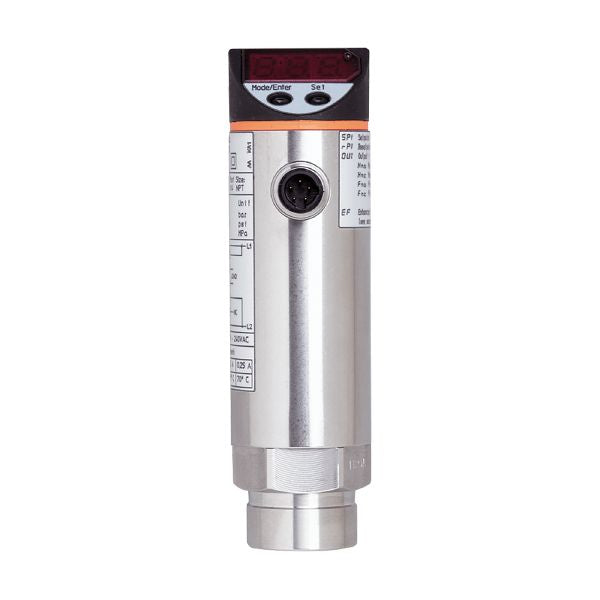

Ifm PN4229 Pressure Sensor With Display
Country Of Origin:
| Number of inputs and outputs | Number of digital outputs: 1 | ||||
|---|---|---|---|---|---|
| Measuring range |
|
||||
| Process connection | threaded connection 1/4" NPT Internal thread |
| Application | for industrial applications | |||
|---|---|---|---|---|
| Media | liquids and gases | |||
| Medium temperature [°C] | -25...80 | |||
| Min. bursting pressure |
|
|||
| Pressure rating |
|
|||
| Type of pressure | relative pressure; vacuum |
| Operating voltage tolerance [%] | 5...10 |
|---|---|
| Operating voltage [V] | 90...250 AC |
| Nominal voltage AC [V] | < 250 |
| Current consumption [mA] | < 10 |
| Min. insulation resistance [MΩ] | 100; (500 V DC) |
| Protection class | II |
| Reverse polarity protection | no |
| Power-on delay time [s] | 0.2 |
| Integrated watchdog | yes |
| Number of inputs and outputs | Number of digital outputs: 1 |
|---|
| Total number of outputs | 1 |
|---|---|
| Output signal | switching signal |
| Electrical design | Triac |
| Number of digital outputs | 1 |
| Output function | normally open / closed; (configurable) |
| Max. voltage drop switching output AC [V] | 2 |
| Permanent current rating of switching output AC [mA] | 250; ((...70 °C) 1000 (...60 °C) 1500 (...45 °C) 2500 (...20 °C)) |
| Switching frequency AC [Hz] | < 160 |
| Short-circuit proof | no |
| Overload protection | no |
| Measuring range |
|
||||
|---|---|---|---|---|---|
| Set point SP |
|
||||
| Reset point rP |
|
||||
| In steps of |
|
| Switch point accuracy [% of the span] | < ± 1,0 |
|---|---|
| Repeatability [% of the span] | < ± 0,1; (with temperature fluctuations < 10 K) |
| Linearity deviation [% of the span] | < ± 0,5 |
| Hysteresis deviation [% of the span] | < ± 0,1 |
| Long-term stability [% of the span] | < ± 0,1; (per year) |
| Temperature coefficient zero point [% of the span / 10 K] | < ± 0,2; (-25...80 °C) |
| Temperature coefficient span [% of the span / 10 K] | < ± 0,3; (-25...80 °C) |
| Delay time programmable dS, dr [s] | 0, 0,2,...10, 11,...50 |
|---|---|
| Damping process value dAP [s] | 0...4 |
| Adjustment of the switch point | Programming button |
|---|---|
| Parameter setting options | hysteresis / window; normally open / closed; switch-on/switch-off delay; Damping; adaptation of displayed values; display can be rotated and switched off; Display unit |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...100 |
| Protection | IP 65 |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||
| Vibration resistance |
|
||||||||
| MTTF [years] | 224.58 | ||||||||
| Pressure equipment directive | sound engineering practice; can be used for group 2 fluids; group 1 fluids on request |
| Weight [g] | 389 |
|---|---|
| Material | stainless steel (1.4301 / 304); PC; PBT; PA; FKM |
| Materials (wetted parts) |
