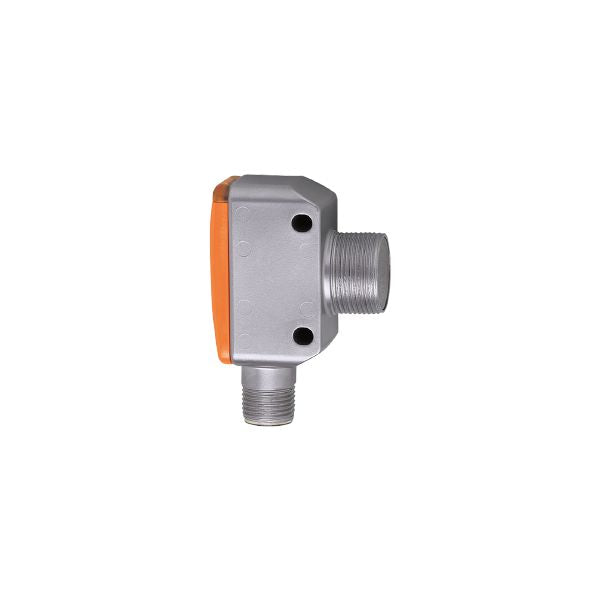

Ifm OGS380 Through-Beam Sensor Transmitter
Ifm OGS380 Through-Beam Sensor Transmitter is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm OGS380 Through-Beam Sensor Transmitter
Country Of Origin:
| Type of light | red light |
|---|---|
| Housing | rectangular with M18 thread |
| Function principle | Through-beam sensor |
|---|
| Operating voltage [V] | 10...30 DC |
|---|---|
| Rated insulation voltage [V] | 32 |
| Current consumption [mA] | 17 |
| Protection class | III |
| Reverse polarity protection | yes |
| Max. power-on delay time [ms] | 300 |
| Type of light | red light |
| Wave length [nm] | 662 |
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | 15 |
| Max. light spot diameter [mm] | 800 |
| Light spot dimensions refer to | at maximum range |
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Device Identification, Device Diagnosis | ||||
| SIO mode | no | ||||
| Required master port class | A | ||||
| Min. process cycle time [ms] | 2.5 | ||||
| IO-Link process data (cyclical) |
|
||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter | ||||
| Supported DeviceIDs |
|
||||
| Note |
|
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...80 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 1011 | ||||||||
| UL approval |
|
| Weight [g] | 78 | |
|---|---|---|
| Housing | rectangular with M18 thread | |
| Dimensions [mm] | 52.9 x 20 x 34.6 | |
| Thread designation | M18 x 1 | |
| Material | stainless steel (630/1.4542/17-4 PH); PEI | |
| Lens material |
|
|
| Lens alignment | Side sensing |
| Display |
|
|---|
| Items supplied |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
|---|
|
excess gain graph
|
|
|---|
