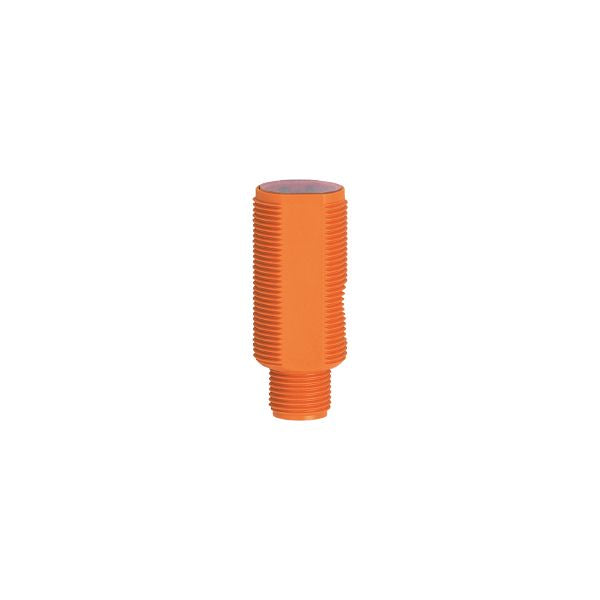

Ifm OGS100 Through-Beam Sensor Transmitter
Country Of Origin:
| Type of light | red light |
|---|---|
| Housing | Threaded type |
| Function principle | Through-beam sensor |
|---|
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 645 |
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | < 8 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 600 |
| Light spot dimensions refer to | at maximum range |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67; (in conjunction with a corresponding connector) |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 1899 |
| Weight [g] | 14.3 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M18 x 1 / L = 44 | |
| Thread designation | M18 x 1 | |
| Material | housing: ABS | |
| Lens material |
|
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
