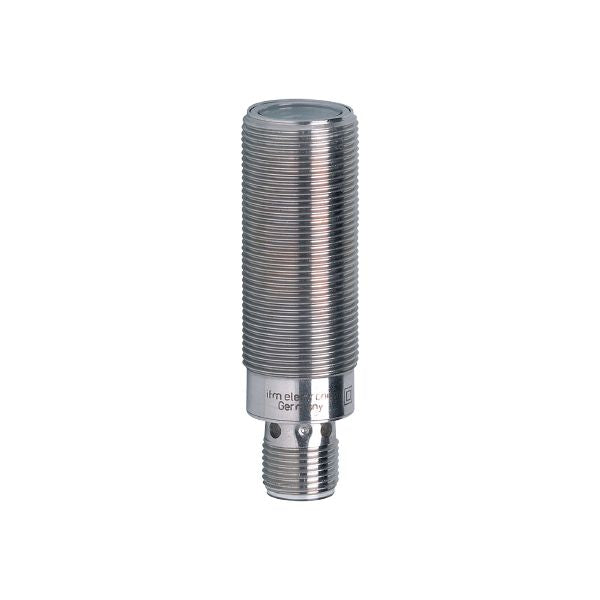

Ifm OGP300 Retro-Reflective Sensor
Country Of Origin:
| Type of light | red light |
|---|---|
| Housing | Threaded type |
| System | polarization filter |
|---|---|
| Function principle | Retro-reflective sensor |
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 15 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150; (200 (...60 °C)) |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Range referred to prismatic reflector [m] | 0.03...4; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Range adjustable | no |
| Max. light spot diameter [mm] | 160 |
| Light spot dimensions refer to | at maximum range |
| Polarization filter available | yes |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 509 |
| Weight [g] | 55 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M18 x 1 / L = 60 | |
| Thread designation | M18 x 1 | |
| Material | housing: stainless steel (1.4404 / 316L); sealing: EPDM | |
| Lens material |
|
| Display |
|
|---|
| Items supplied |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Connector: 1 x M12; coding: A |
|---|
|
excess gain graph
|
|
|---|
