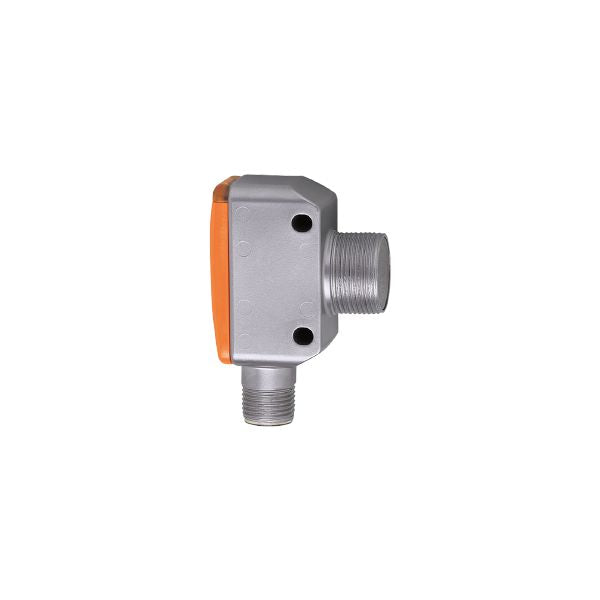

Ifm OGH382 Diffuse Reflection Sensors With Background Suppression
| Type of light | red light |
|---|---|
| Housing | rectangular with M18 thread |
| System | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 25 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 645 |
| Electrical design | NPN |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Range [mm] | < 100; (white paper 200 x 200 mm 90 % remission) |
|---|---|
| Range on white object (90 % remission) [mm] | < 100 |
| Range on grey object (18 % remission) [mm] | < 100 |
| Range on black object (6 % remission) [mm] | < 100 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 7 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Communication interface | IO-Link | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||||||
| IO-Link revision | 1.1 | ||||||||
| SDCI standard | IEC 61131-9 | ||||||||
| Profiles | Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel | ||||||||
| SIO mode | yes | ||||||||
| Required master port class | A | ||||||||
| Min. process cycle time [ms] | 10 | ||||||||
| IO-Link process data (cyclical) |
|
||||||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter | ||||||||
| Supported DeviceIDs |
|
||||||||
| Note |
|
| Ambient temperature [°C] | -25...80 |
|---|---|
| Storage temperature [°C] | -40...80 |
| Protection | IP 65; IP 67; IP 68; IP 69K |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 782 | ||||||||
| UL approval |
|
| Weight [g] | 74.45 | |
|---|---|---|
| Housing | rectangular with M18 thread | |
| Dimensions [mm] | 52.9 x 20 x 35.9 | |
| Thread designation | M18 x 1 | |
| Material | stainless steel (630/1.4542/17-4 PH); PEI | |
| Lens material |
|
|
| Lens alignment | Side sensing |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
| Repeatability of the measured values | ||
| Abstand | white (90 % remission) | black (6 %...90 % remission) |
| 20 mm | 0.5 mm | 1.0 mm |
| 50 mm | 0.8 mm | 2.0 mm |
| 100 mm | 1.5 mm | 4.5 mm |
| Accuracy |
