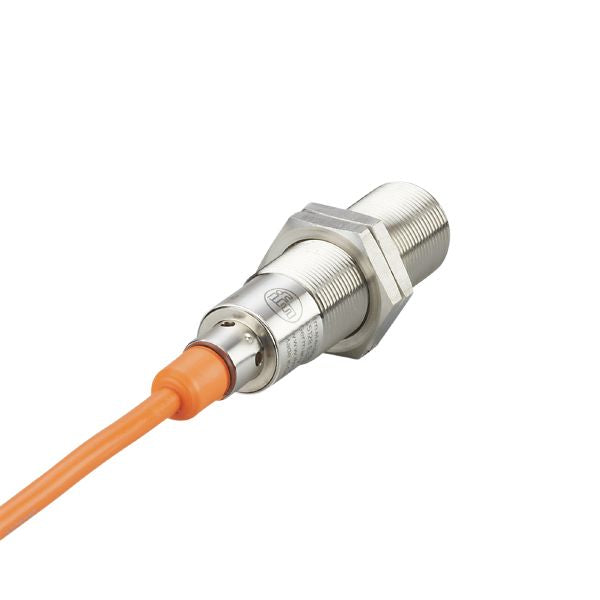

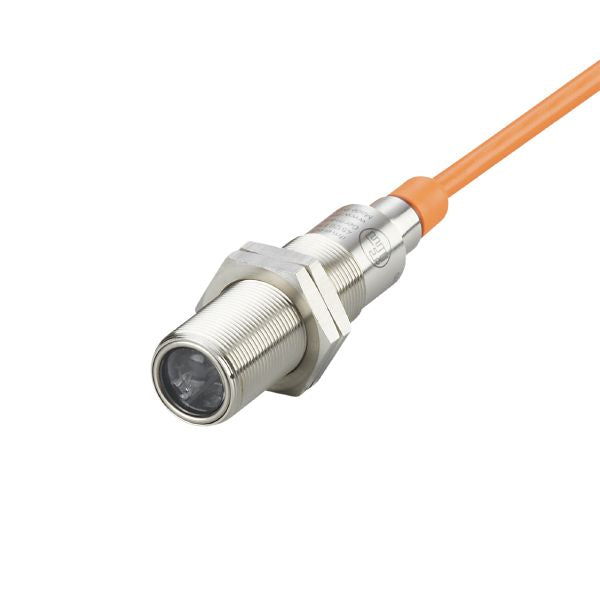

Ifm OGH308 Diffuse Reflection Sensors With Background Suppression
| Type of light | red light |
|---|---|
| Housing | Threaded type |
| System | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150; (200 (...60 °C)) |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Range [mm] | < 200; (white paper 200 x 200 mm 90 % remission) |
|---|---|
| Range on white object (90 % remission) [mm] | < 200 |
| Range on grey object (18 % remission) [mm] | < 200 |
| Range on black object (6 % remission) [mm] | < 190 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 17 |
| Light spot dimensions refer to | Range |
| Background suppression available | yes |
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 372 |
| Weight [g] | 265 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M18 x 1 / L = 80.4 | |
| Thread designation | M18 x 1 | |
| Material | housing: stainless steel (1.4404 / 316L); sealing: EPDM | |
| Lens material |
|
| Display |
|
|---|
| Items supplied |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| Connection | Cable: 6 m, PVC; 3 x 0.34 mm² |
|---|
