Ifm | SKU:
IF-OG5128-E

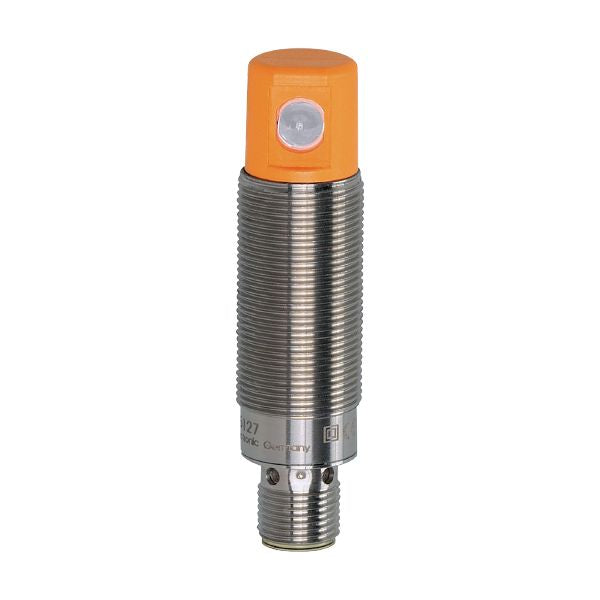

Ifm OG5128 Through-Beam Sensor Receiver
$135.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm OG5128 Through-Beam Sensor Receiver is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm OG5128 Through-Beam Sensor Receiver
$135.00 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | red light |
|---|---|
| Housing | Threaded type |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC; (cULus - Class 2 source required) |
|---|---|
| Current consumption [mA] | < 12 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 660 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Transmitter / receiver | receiver |
|---|---|
| Range [m] | < 9 |
| Range adjustable | no |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 68 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 953 |
Mechanical data
| Weight [g] | 58.4 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M18 x 1 / L = 59.3 | |
| Thread designation | M18 x 1 | |
| Material | stainless steel; ABS | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
