Ifm | SKU: IF-OG0028-E | Barcode: DOES NOT APPLY

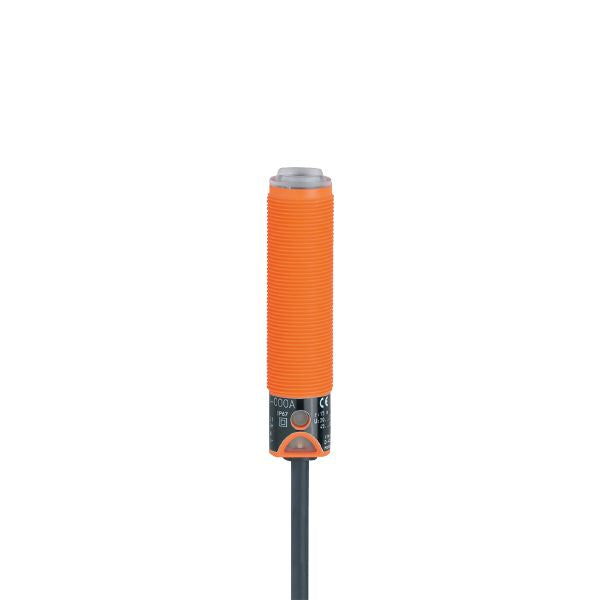

Ifm OG0028 Through-Beam Sensor Transmitter

$112.78 USD

Shipping calculated at checkout.

Ifm OG0028 Through-Beam Sensor Transmitter is backordered and will ship as soon as it is back in stock.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Product characteristics

Type of light	Infrared light
Housing	Threaded type

Application

Function principle	Through-beam sensor

Electrical data

Frequency AC [Hz]	47...63
Operating voltage [V]	20...250 AC/DC
Current consumption [mA]	< 5
Protection class	II
Type of light	Infrared light
Wave length [nm]	880

Outputs

Short-circuit protection	no
Overload protection	no

Monitoring range

Transmitter / receiver	transmitter
Range [m]	< 15
Range adjustable	no
Max. light spot diameter [mm]	2000
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF [years]

1662

Mechanical data

Weight [g]

120.9

Housing

Threaded type

Dimensions [mm]

M18 x 1 / L = 78.5

Thread designation

M18 x 1

Material

PBT

Lens material

PMMA

Displays / operating elements

Display

Power

1 x LED, green

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 2 x 0.5 mm²
