Ifm | SKU:
IF-OF5050-E

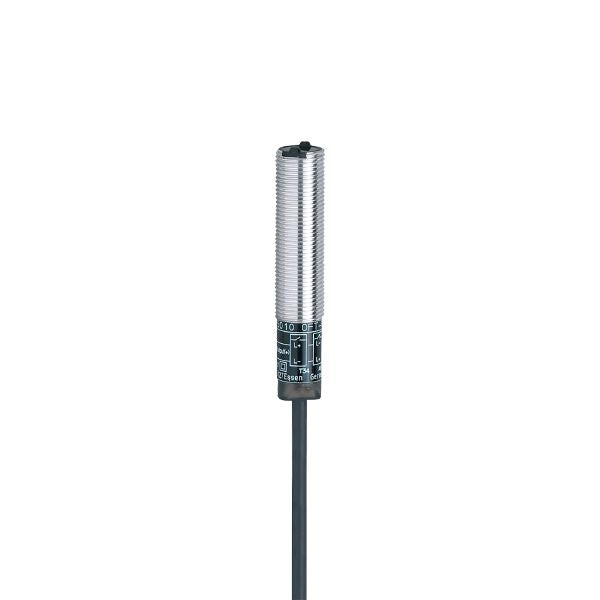

Ifm OF5050 Retro-Reflective Sensor
$152.22 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm OF5050 Retro-Reflective Sensor is backordered and will ship as soon as it is back in stock.
As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 175% tariff.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm OF5050 Retro-Reflective Sensor
$152.22 USD
Unit price
/
Unavailable
Product characteristics
| Type of light | Infrared light |
|---|---|
| Housing | Threaded type |
Application
| Function principle | Retro-reflective sensor |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | < 30 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | Infrared light |
| Wave length [nm] | 880 |
Outputs
| Electrical design | NPN |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 320 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Range referred to prismatic reflector [m] | 0.05...2; (Prismatic reflector Ø 80 E20005) |
|---|---|
| Max. light spot diameter [mm] | 140 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 903 |
Mechanical data
| Weight [g] | 73 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M12 x 1 / L = 60 | |
| Thread designation | M12 x 1 | |
| Material | brass nickel-plated | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PUR; 3 x 0.34 mm² |
|---|
Diagrams and graphs
|
excess gain graph
|
|
|---|
