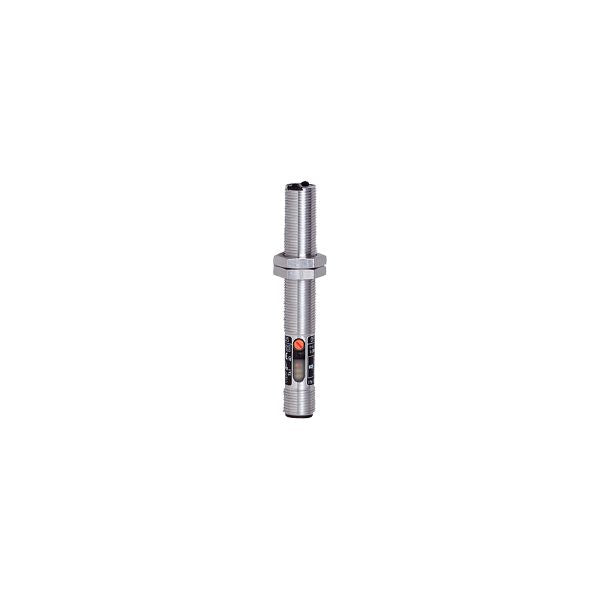

Ifm OF5049 Diffuse Reflection Sensor
Country Of Origin:
| Type of light | Infrared light |
|---|---|
| Housing | Threaded type |
| System | Function check output |
|---|---|
| Function principle | Diffuse reflection sensor |
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | < 35 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | Infrared light |
| Wave length [nm] | 880 |
| Electrical design | NPN |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Function check output | yes |
| Max. voltage drop of function check output [V] | 3.5 |
| Max. current load for function check output [mA] | 10 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 320 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Range [mm] | 1...200; (white paper 200 x 200 mm) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter [mm] | 92 |
| Light spot dimensions refer to | at maximum range |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
| EMC |
|
||||
|---|---|---|---|---|---|
| MTTF [years] | 601 |
| Weight [g] | 43.3 | |
|---|---|---|
| Housing | Threaded type | |
| Dimensions [mm] | M12 x 1 / L = 74 | |
| Thread designation | M12 x 1 | |
| Material | brass nickel-plated | |
| Lens material |
|
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
|
excess gain graph
|
|
|---|
