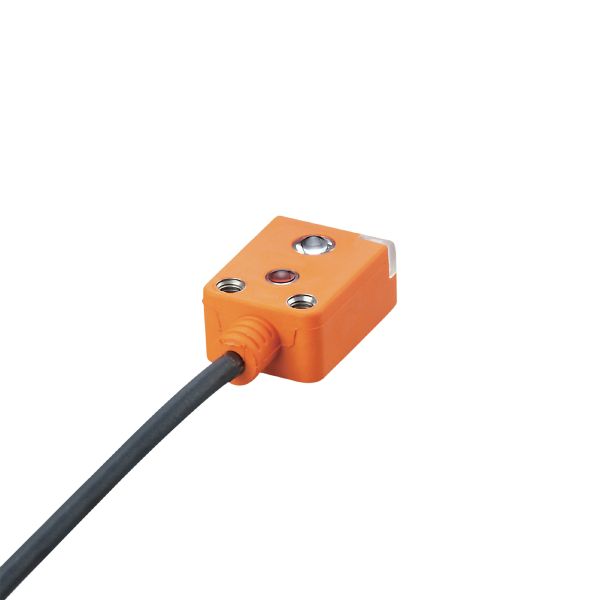

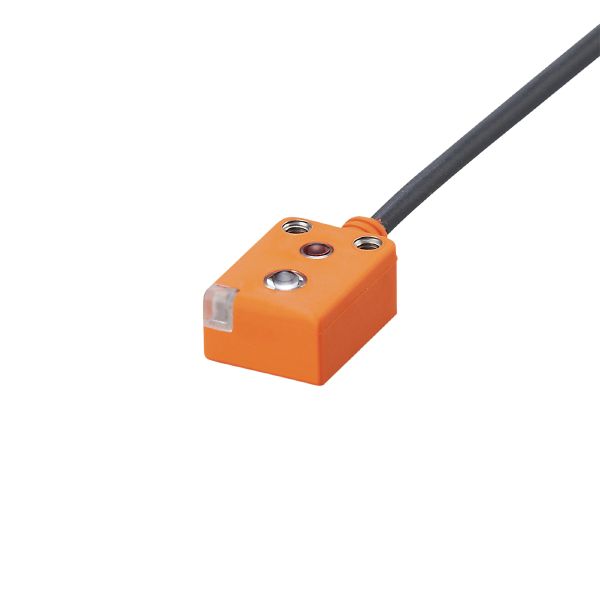

Ifm O7H212 Diffuse Reflection Sensors With Background Suppression
| Type of light | red light |
|---|---|
| Housing | rectangular |
| System | Background suppression |
|---|---|
| Function principle | Diffuse reflection sensor |
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 20; ((24 V)) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 633 |
| Electrical design | PNP |
|---|---|
| Output function | light-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 750 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Range [mm] | 3...100; (white paper 200 x 200 mm) |
|---|---|
| Range on white object (90 % remission) [mm] | 3...100 |
| Range on grey object (18 % remission) [mm] | 6...80 |
| Range on black object (6 % remission) [mm] | 7...46 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 7 |
| Light spot dimensions refer to | at maximum range |
| Background suppression available | yes |
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 1610 |
| Weight [g] | 31.2 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 20.3 x 15 x 9 | |
| Material | PA | |
| Lens material |
|
|
| Lens alignment | Side sensing |
| Display |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Cable: 2 m, PUR; 3 x 0.14 mm² |
|---|
