Ifm  |  SKU: IF-O6P200-E  |  Barcode: DOES NOT APPLY

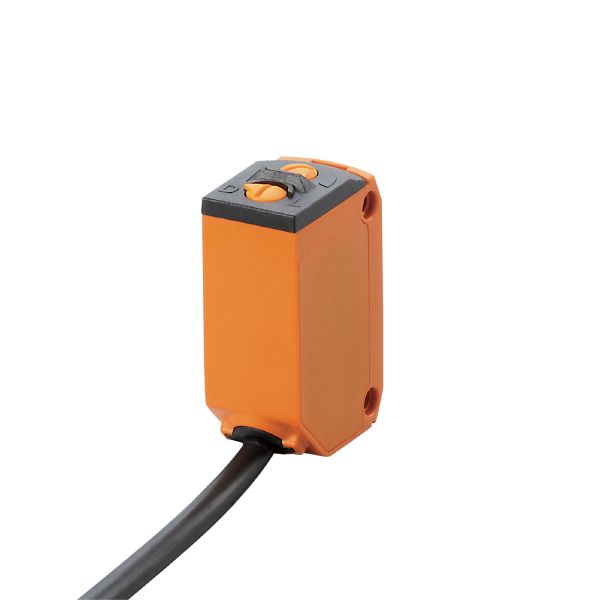

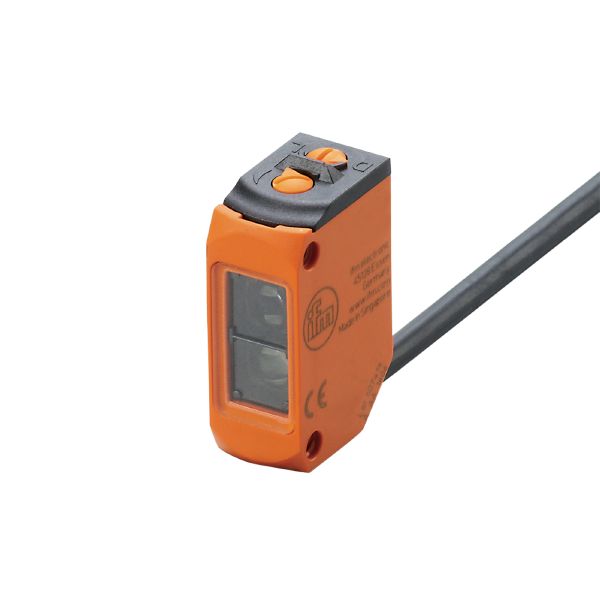

Ifm O6P200 Retro-Reflective Sensor

$106.67 USD
Shipping calculated at checkout.

Ifm O6P200 Retro-Reflective Sensor is backordered and will ship as soon as it is back in stock.


🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Sign up for exclusive offers.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Description:

  • Operating voltage: 10...30 DC V
  • Current consumption: 12 mA (at 24 V)
  • Protection class: III
  • Reverse polarity protection: Yes
  • Type of light: Red light
  • Wavelength: 633 nm
  • Outputs:
  • Electrical design: PNP
  • Output function: Light-on/dark-on mode (selectable)
  • Max. voltage drop switching output DC: 2.5 V
  • Permanent current rating of switching output DC: 100 mA
  • Switching frequency DC: 1000 Hz
  • Short-circuit protection: Yes
  • Type of short-circuit protection: Pulsed
  • Detection zone:
  • Range referred to prismatic reflector: 0.05...5 m (Prismatic reflector Ø 80 E20005)
  • Range adjustable: Yes
  • Max. light spot diameter: 150 mm
  • Light spot dimensions refer to: At maximum range
  • Polarisation filter available: Yes
  • Operating conditions:
  • Ambient temperature: -25...60 °C
  • Storage temperature: -40...70 °C
  • Max. relative air humidity: 50% (at 70°C)
  • Protection: IP 65; IP 67
