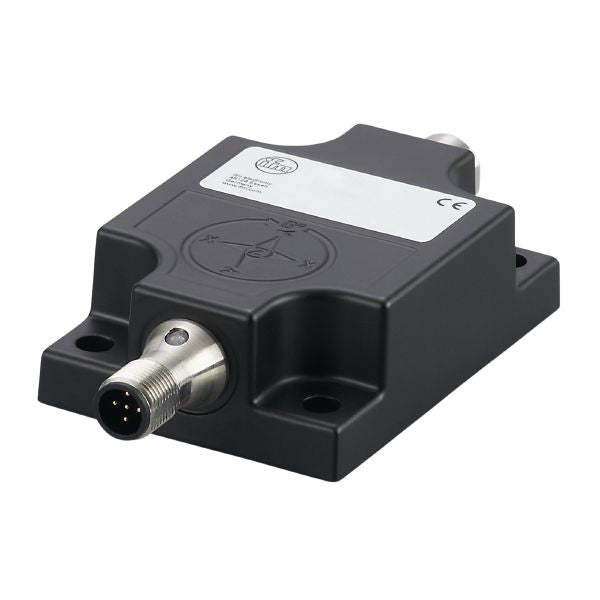

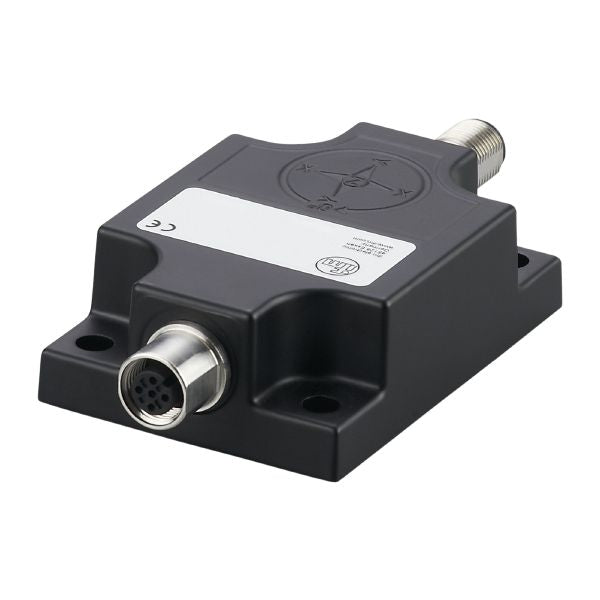

Ifm JD2120 Inclination Sensor
Country Of Origin:
Electrical Data:
- Operating Voltage: 9...30 V DC
- Current Consumption: < 65 mA
- Min. Insulation Resistance: 100 MΩ (500 V DC)
- Protection Class: III
- Reverse Polarity Protection: Yes
Measuring/Setting Range:
- Measuring Range:
- Acceleration: ±4 g
- Vehicle Yaw Rate: ±500°/s
- Hysteresis: ≤ ±0.05°
- Repeatability: ±0.05°
- Resolution: 0.01° (configurable)
- Temperature Coefficient: ≤ ±0.008°/K
- Dynamic Accuracy: ±0.5°
- Static Accuracy: ±0.3°
Interfaces:
- Communication: CAN (1 interface)
- Terminating Resistor: Internal, configurable
- Protocol: CANopen
- Factory Settings:
- Baud Rate: 125 kBit/s
- Node ID: 10
- Version: CiA DS301 V4.2.0, DSP-410 V2.0.0, CiA 306 V1.3.0
Operating Conditions:
- Ambient Temp: -40...85°C
- Storage Temp: -40...85°C
- Protection: IP 67, IP 68, IP 69K
Tests / Approvals:
- EMC: DIN EN 61000-6-2, 61000-6-4
- Shock Resistance: DIN EN 60068-2-27
- Vibration Resistance: DIN EN 60068-2-6
- MTTF: 260 years
Mechanical Data:
- Weight: 210 g
- Dimensions: 27 x 59 x 118.5 mm
- Material: Housing: Diecast aluminum, Potting: Polyurethane resin
- Mounting Orientation: Horizontal
Displays / Operating Elements:
- Display:
- Preoperational: 1 x Green LED
- Operational: 1 x Green Flashing LED
- Fault: 1 x Red LED
Accessories:
- Items Supplied: 2 x Protective cover
Remarks:
- Pack Quantity: 1 pcs
Electrical Connection - CAN-In / Out:
- Connector: 1 x M12, A coding
