Ifm  |  SKU: IF-IM5173-E  |  Barcode: DOES NOT APPLY

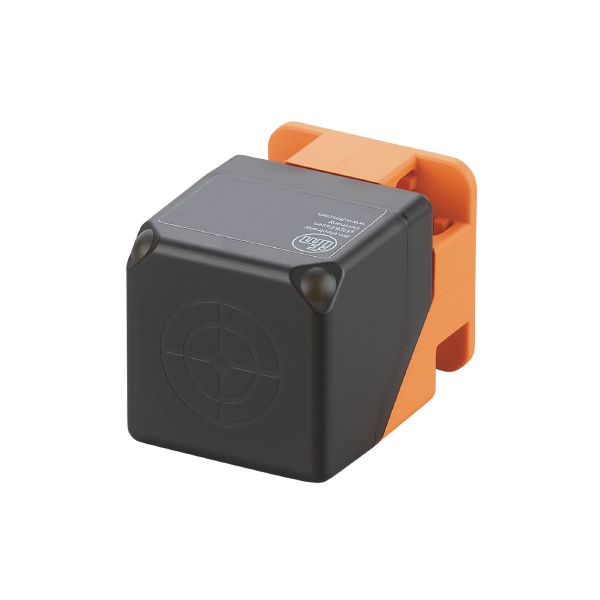

Ifm IM5173 Inductive Sensor With Io-Link

$105.56 USD
Shipping calculated at checkout.

Ifm IM5173 Inductive Sensor With Io-Link is backordered and will ship as soon as it is back in stock.


🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Sign up for exclusive offers.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Product characteristics
Electrical design PNP/NPN; (configurable)
Output function normally open / closed; (selectable)
Communication interface IO-Link
Housing rectangular
Dimensions [mm] 40 x 40 x 54
Electrical data
Operating voltage [V] 10...30 DC
Current consumption [mA] < 20
Protection class III
Reverse polarity protection yes
Outputs
Electrical design PNP/NPN; (configurable)
Output function normally open / closed; (selectable)
Max. voltage drop switching output DC [V] 2.5
Permanent current rating of switching output DC [mA] 100
Switching frequency DC [Hz] 100
Short-circuit protection yes
Overload protection yes
Monitoring range
Switch point IO-Link [mm] 4.9...24.3; (configurable)
Measuring range IO-Link [mm] 2.6...26
Accuracy / deviations
Correction factor steel: 1 / stainless steel: 0.8 / brass: 0.4 / aluminum: 0.4 / copper: 0.3
Hysteresis [% of Sr] 3...15
Linearity error of analog output [%] ± 2 %; (of the final value of the measuring range)
Repeatability analog output [%] ± 1 %; (of the final value of the measuring range)
Temperature coefficient ± 0,2 %/K; (of the final value of the measuring range)
Interfaces
Communication interface IO-Link
Transmission type COM2 (38,4 kBaud)
IO-Link revision 1.1
SDCI standard IEC 61131-9 CDV
Profiles Smart Sensor: Device Identification; Device Diagnosis; Device Teach Channel; Binary Data Channel; Process Data Variable
SIO mode yes
Required master port class A
Min. process cycle time [ms] 3
Supported DeviceIDs
Type of operation DeviceID
default 791
Operating conditions
Ambient temperature [°C] -25...80
Protection IP 67
Tests / approvals
EMC
EN 61000-4-2 ESD 4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated 10 V/m
EN 61000-4-4 Burst 2 kV
EN 61000-4-6 HF conducted 10 V
EN 55011 class B
MTTF [years] 629
Embedded software included yes
UL approval
Ta -25...70 °C
Enclosure type Type 1
voltage supply Limited Voltage/Current
UL approval number A009
File number UL E174191
Mechanical data
Weight [g] 151.5
Housing rectangular
Sensing face 5 positions selectable
Mounting non-flush mountable
Dimensions [mm] 40 x 40 x 54
Material PA
Displays / operating elements
Display
Power LED, green
SIO mode
output stage supplied with current LED, yellow lights
IO-Link mode
target in measuring range LED, yellow lights
Remarks
Pack quantity 1 pcs.
Electrical connection - plug

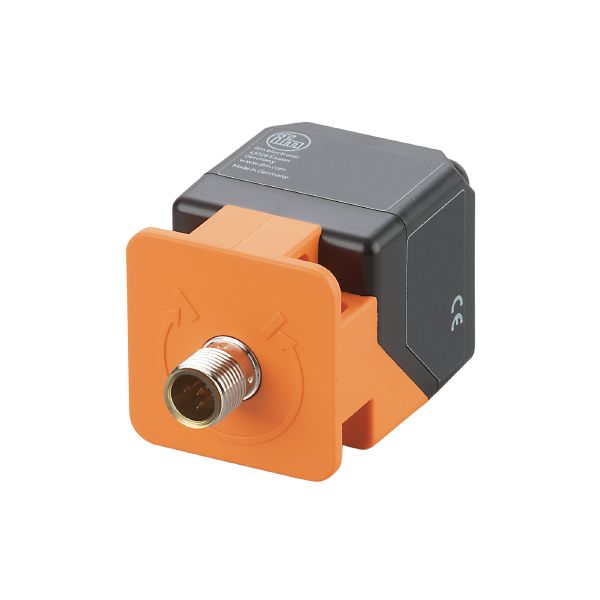

Connection Connector: 1 x M12; coding: A; Moulded body: brass, white bronze coated
