Ifm | SKU:
IF-IM512A-E

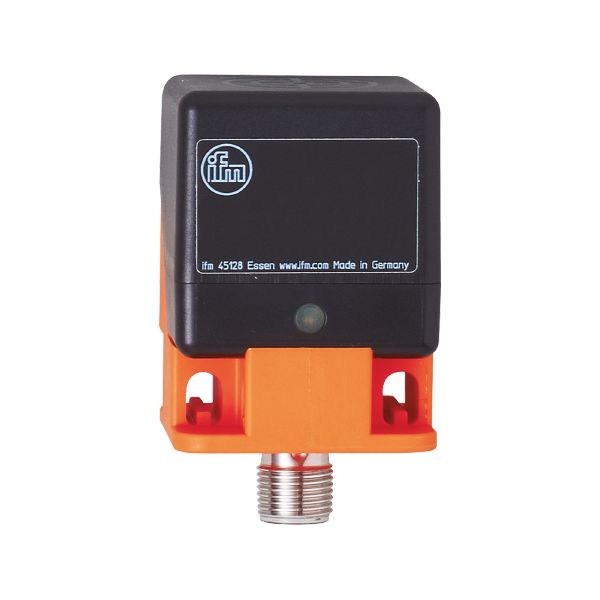

Ifm IM512A Inductive Sensor
$113.33 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IM512A Inductive Sensor is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm IM512A Inductive Sensor
$113.33 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Sensing range [mm] | 20 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 54 |
Application
| System | gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 15 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | complementary |
| Max. voltage drop switching output DC [V] | 2.5 |
| Max. leakage current [mA] | 0.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit proof | yes |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 20 |
|---|---|
| Real sensing range Sr [mm] | 20 ± 10 % |
| Operating distance [mm] | 0...16.2 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| Approval | BVS 20 ATEX E 057 X; IECEx BVS 20.0044 X | ||
|---|---|---|---|
| ATEX marking |
|
||
|
|
|||
| EMC |
|
||
| MTTF [years] | 1326 |
Mechanical data
| Weight [g] | 170 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions [mm] | 40 x 40 x 54 |
| Material | PC; PA; TPE |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connection | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
