Ifm | SKU: IF-IM5118-E | Barcode: DOES NOT APPLY

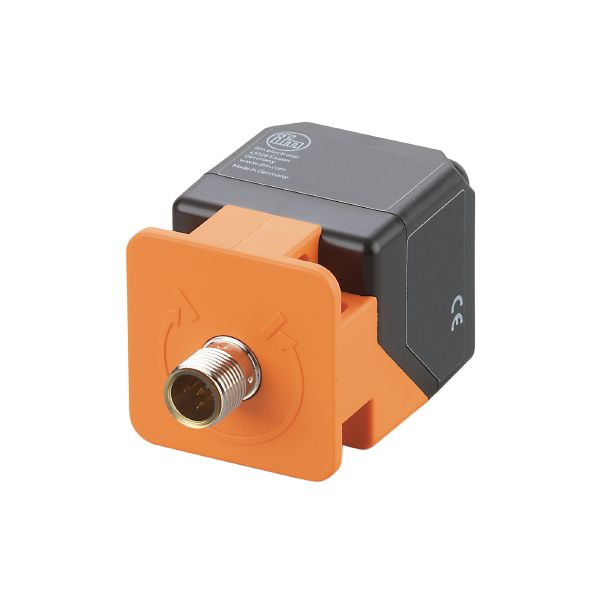

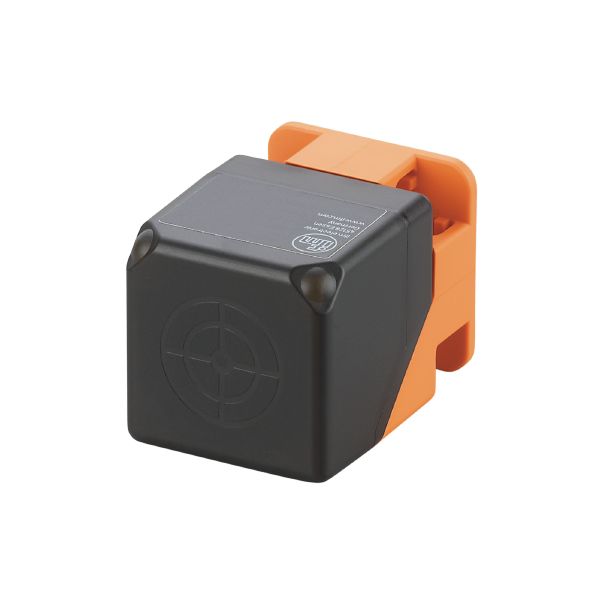

Ifm IM5118 Inductive As-Interface Sensor

$198.33 USD

Shipping calculated at checkout.

Ifm IM5118 Inductive As-Interface Sensor is backordered and will ship as soon as it is back in stock.

As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 175% tariff.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Product characteristics

Electrical design	AS-i
Sensing range [mm]	15
Housing	rectangular
Dimensions [mm]	40 x 40 x 54

Electrical data

Operating voltage [V]	26.5...31.6 DC
Current consumption [mA]	< 35
Protection class	III
Reverse polarity protection	yes

Outputs

Electrical design	AS-i
Switching frequency DC [Hz]	100

Monitoring range

Sensing range [mm]	15
Operating distance [mm]	0...12.1

Accuracy / deviations

Correction factor	steel: 1 / stainless steel: 0.7 / brass: 0.5 / aluminum: 0.5 / copper: 0.4
Hysteresis [% of Sr]	1...20
Switch-point drift [% of Sr]	-10...10

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC

EN 61000-4-2 ESD	4 kV CD / 8 kV AD
EN 61000-4-3 HF radiated	10 V/m
EN 61000-4-4 Burst	2 kV
EN 61000-4-6 HF conducted	10 V
EN 55011	class B

MTTF [years]

958

AS-i classification

AS-i version

3.0

Extended addressing mode

yes

AS-i I/O configuration [hex]

AS-i ID code [hex]

A.E

AS-i certificate

71901

Data bits

Description	switching signal	Unsafe zone	readiness for operation	not used
status = 0	target outside the active zone, yellow LED off	target within the uncertain zone, red LED flashes	unit faulty or distance to medium < 10 %, red LED flashes	-
status = 1	target within the active zone, yellow LED on	target outside the uncertain zone, red LED off	readiness for operation, red LED off	default value

Mechanical data

Weight [g]	151.5
Housing	rectangular
Sensing face	5 positions selectable
Mounting	flush mountable
Dimensions [mm]	40 x 40 x 54
Material	PBT; PPE

Displays / operating elements

Display

Switching status	1 x LED, yellow
Function	1 x LED, red

Remarks

Pack quantity	1 pcs.

Electrical connection - plug

Connection	Connector: 1 x M12; coding: A; Locking: locking, rotatable
