Ifm | SKU:
IF-IM0042-E

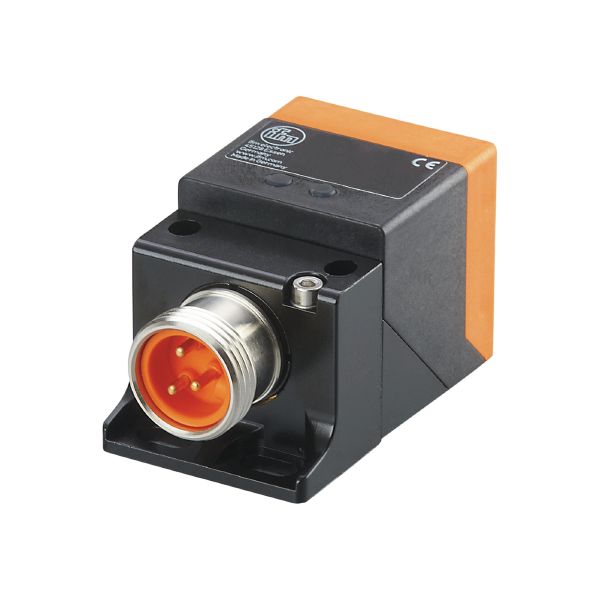

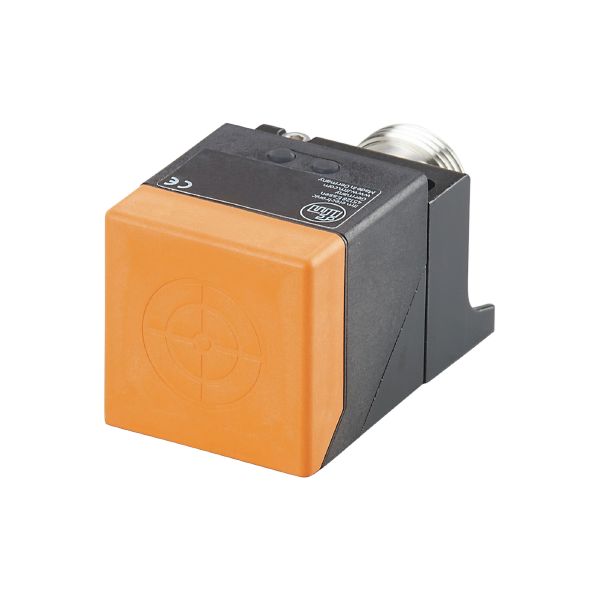

Ifm IM0042 Inductive Sensor
$190.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IM0042 Inductive Sensor is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm IM0042 Inductive Sensor
$190.00 USD
Unit price
/
Unavailable
Product characteristics
| Output function | normally open |
|---|---|
| Sensing range [mm] | 35 |
| Housing | rectangular |
Application
| System | Increased sensing range |
|---|
Electrical data
| Frequency AC [Hz] | 47...63 |
|---|---|
| Operating voltage [V] | 20...140 AC / 10...140 DC |
| Protection class | I |
| Reverse polarity protection | yes |
Outputs
| Output function | normally open |
|---|---|
| Max. voltage drop switching output DC [V] | 5.5 |
| Max. voltage drop switching output AC [V] | 5.5 |
| Minimum load current [mA] | 5.5 |
| Max. leakage current [mA] | 1.7 (140 V AC/DC) |
| Permanent current rating of switching output AC [mA] | 450 |
| Permanent current rating of switching output DC [mA] | 450 |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) |
| Switching frequency AC [Hz] | 25 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 35 |
|---|---|
| Operating distance [mm] | 0...28.3 |
| Increased sensing range | yes |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.4 / copper: 0.3 |
|---|---|
| Hysteresis [% of Sr] | 3...15 |
Operating conditions
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 353 | ||||||||
| UL approval |
|
Mechanical data
| Weight [g] | 266.5 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Material | PPE; clamp: diecast zinc |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection - plug
| Connector: 1 x 7/8"; coding: A; Locking: brass |
