Ifm | SKU:
IF-IM002A-E

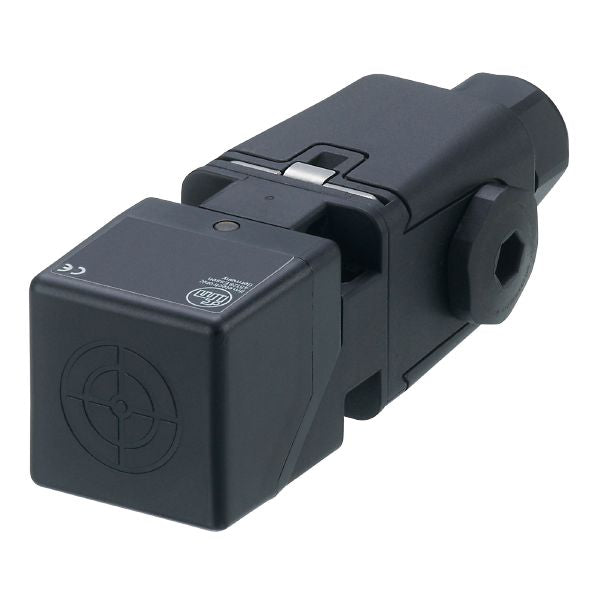

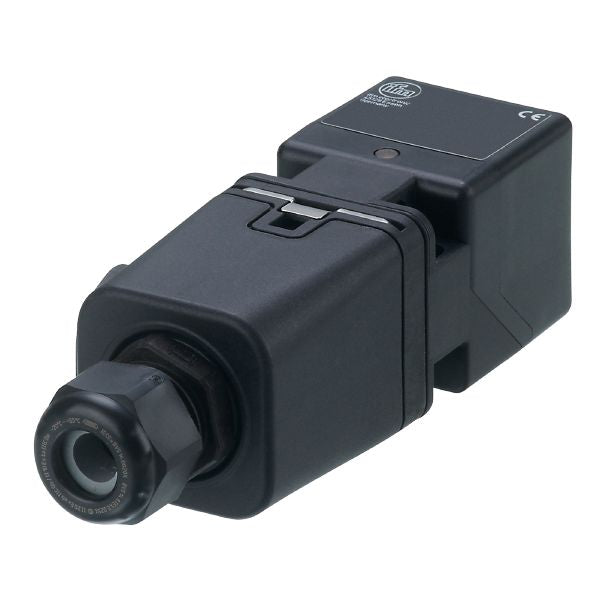

Ifm IM002A Inductive Sensor
$255.00 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IM002A Inductive Sensor is backordered and will ship as soon as it is back in stock.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm IM002A Inductive Sensor
$255.00 USD
Unit price
/
Unavailable
Product characteristics
| Output function | normally open / closed; (selectable) |
|---|---|
| Sensing range [mm] | 40 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 40 x 105 |
Electrical data
| Operating voltage [V] | 20...250 AC/DC |
|---|---|
| Protection class | II |
| Reverse polarity protection | no |
Outputs
| Output function | normally open / closed; (selectable) | |
|---|---|---|
| Max. voltage drop switching output DC [V] | 6 | |
| Max. voltage drop switching output AC [V] | 6.5 | |
| Minimum load current [mA] | 5 | |
| Max. leakage current [mA] | 2.5 (250 V AC) / 1.3 (130 V AC) / 0.8 (24 V DC) | |
| Permanent current rating of switching output AC [mA] | 150 | |
| Permanent current rating of switching output DC [mA] | 100 | |
| Short-time current rating of switching output [mA] | 2200; (20 ms / 0,5 Hz) | |
| Switching frequency AC [Hz] | 10 | |
| Switching frequency DC [Hz] | 10 | |
| Notes on switching frequency [Hz] |
|
|
| Short-circuit proof | no | |
| Overload protection | no |
Monitoring range
| Sensing range [mm] | 40 |
|---|---|
| Real sensing range Sr [mm] | 40 ± 10 % |
| Operating distance [mm] | 0...32.4 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...20 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65; IP 67 |
Tests / approvals
| ATEX marking |
|
||
|---|---|---|---|
| EMC |
|
||
| MTTF [years] | 554 |
Mechanical data
| Weight [g] | 253 |
|---|---|
| Housing | rectangular |
| Mounting | non-flush mountable |
| Dimensions [mm] | 40 x 40 x 105 |
| Material | PC; PA; stainless steel |
Displays / operating elements
| Display |
|
|---|
Electrical connection
| Required protection | miniature fuse to IEC60127-2 sheet 1; ≤ 2 A; fast acting; Place the fuse outside the hazardous area. |
|---|
Remarks
| Remarks |
|
||
|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals: 0.34...2.5 mm²; Cable sheath: Ø 5...9 mm |
|---|
