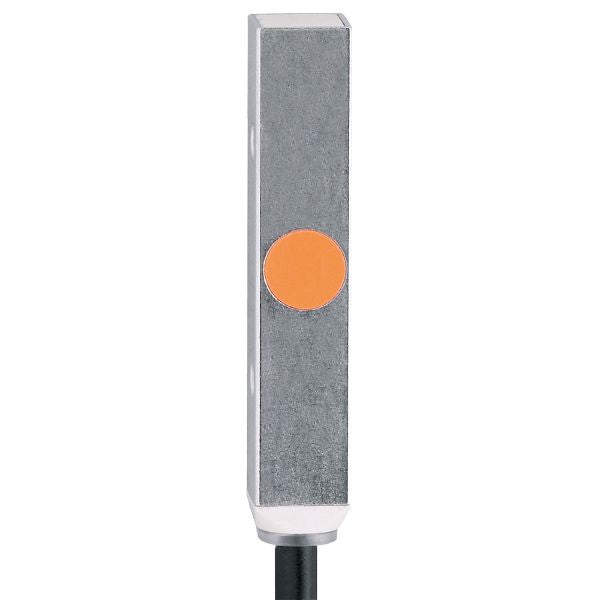

Ifm IL5003 Inductive Sensor
Country Of Origin: Romania
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 2 |
| Housing | rectangular |
| Dimensions [mm] | 40 x 8 x 8 |
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 15; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
| Sensing range [mm] | 2 |
|---|---|
| Real sensing range Sr [mm] | 2 ± 10 % |
| Operating distance [mm] | 0...1.6 |
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch-point drift [% of Sr] | -10...10 |
| Ambient temperature [°C] | -25...70 |
|---|---|
| Protection | IP 65 |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 3449 | ||||||||
| UL approval |
|
| Weight [g] | 42.3 |
|---|---|
| Housing | rectangular |
| Mounting | flush mountable |
| Dimensions [mm] | 40 x 8 x 8 |
| Material | brass white bronze coated; sensing face: LCP |
| Tightening torque [Nm] | 1; (insertion depth: > 5 mm) |
| Display |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Cable: 2 m, PUR / PVC; 3 x 0.14 mm² |
|---|
-
