Ifm | SKU:
IF-IE5208-E

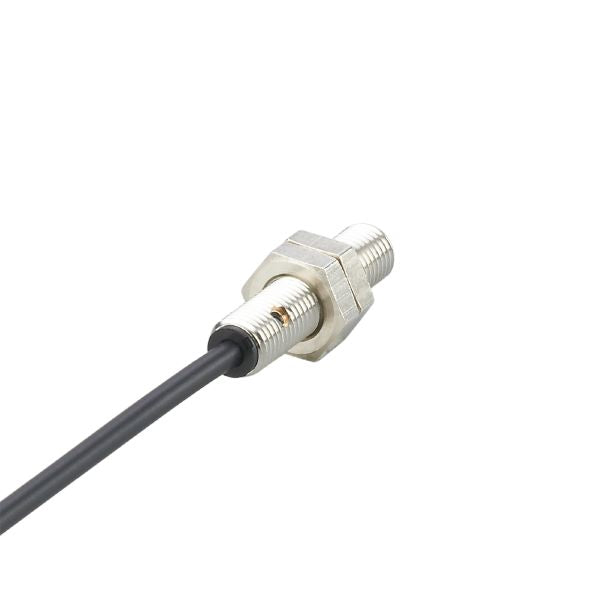

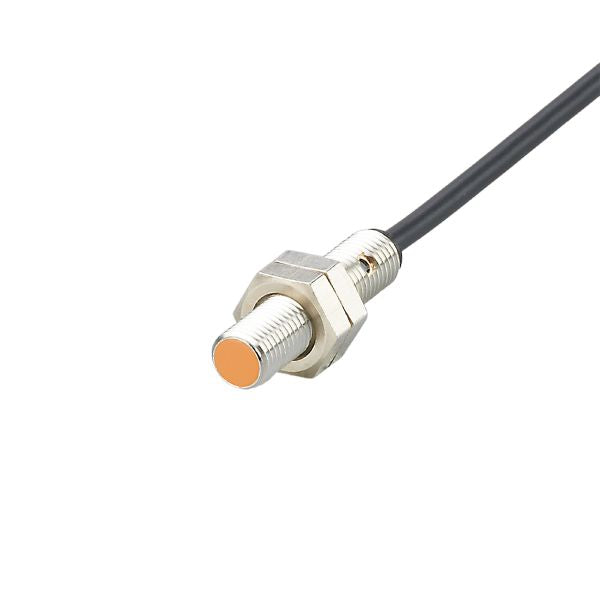

Ifm IE5208 Inductive Sensor
$160.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm IE5208 Inductive Sensor is backordered and will ship as soon as it is back in stock.
As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 175% tariff.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm IE5208 Inductive Sensor
$160.56 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally closed |
| Sensing range [mm] | 1 |
| Housing | Threaded type |
| Dimensions [mm] | M8 x 1 / L = 35 |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP/NPN |
|---|---|
| Output function | normally closed |
| Max. voltage drop switching output DC [V] | 3.5 |
| Minimum load current [mA] | 4 |
| Max. leakage current [mA] | 0.8 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1300 |
| Short-circuit protection | no |
| Overload protection | no |
Monitoring range
| Sensing range [mm] | 1 |
|---|---|
| Real sensing range Sr [mm] | 1 ± 10 % |
| Operating distance [mm] | 0...0.81 |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | 1...15 |
| Switch-point drift [% of Sr] | -10...10 |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| MTTF [years] | 5707 |
Mechanical data
| Weight [g] | 47 |
|---|---|
| Housing | Threaded type |
| Mounting | flush mountable |
| Dimensions [mm] | M8 x 1 / L = 35 |
| Thread designation | M8 x 1 |
| Material | brass white bronze coated; PBT |
| Tightening torque [Nm] | A = 5 mm: 1 Nm; B: 2 Nm |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PVC; 2 x 0.14 mm² |
|---|
Diagrams and graphs
|
Installation
|
|
|---|
