Ifm | SKU:
IF-I27001-E

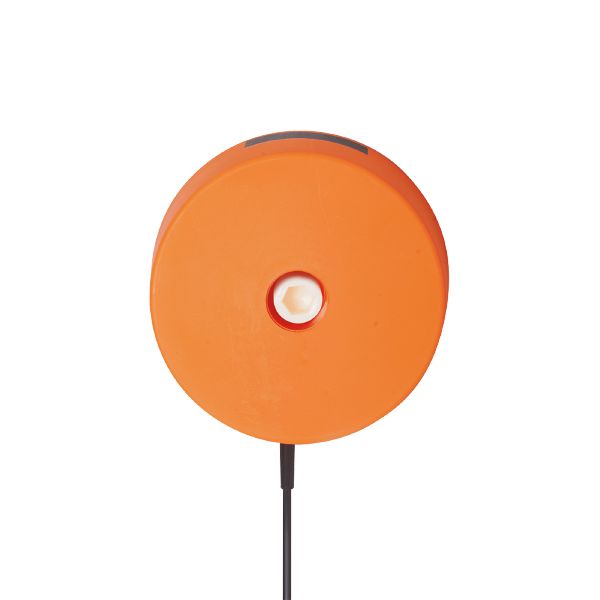

Ifm I27001 Inductive Area Sensor
$550.56 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm I27001 Inductive Area Sensor is backordered and will ship as soon as it is back in stock.
As a Canadian company, any product manufactured in China and imported into the United States will be subject to a 175% tariff.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm I27001 Inductive Area Sensor
$550.56 USD
Unit price
/
Unavailable
Product characteristics
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Sensing range [mm] | 30...120 |
| Housing | tubular |
| Dimensions [mm] | Ø 164 / L = 63 |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 15; (24 V) |
| Protection class | II |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | normally open |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 3 |
| Short-circuit protection | yes |
| Type of short-circuit protection | yes (non-latching) |
| Overload protection | yes |
Monitoring range
| Sensing range [mm] | 30...120 |
|---|---|
| Sensing range adjustable | yes |
| Factory setting sensing range [mm] | 120 |
| Real sensing range Sr [mm] | 120 ± 10 % |
Accuracy / deviations
| Correction factor | steel: 1 / stainless steel: 0.7 / brass: 0.4 / aluminum: 0.3 / copper: 0.2 |
|---|---|
| Hysteresis [% of Sr] | < 15 |
| Switch-point drift [% of Sr] | -15...15 |
Operating conditions
| Ambient temperature [°C] | -20...70 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
||
|---|---|---|---|
| MTTF [years] | 1049 |
Mechanical data
| Weight [g] | 1242.5 |
|---|---|
| Housing | tubular |
| Mounting | non-flush mountable |
| Dimensions [mm] | Ø 164 / L = 63 |
| Material | housing: PBT; bottom cover: aluminum |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 2 m, PVC; 3 x 0.5 mm² |
|---|
