Ifm | SKU:
IF-DTA201-E

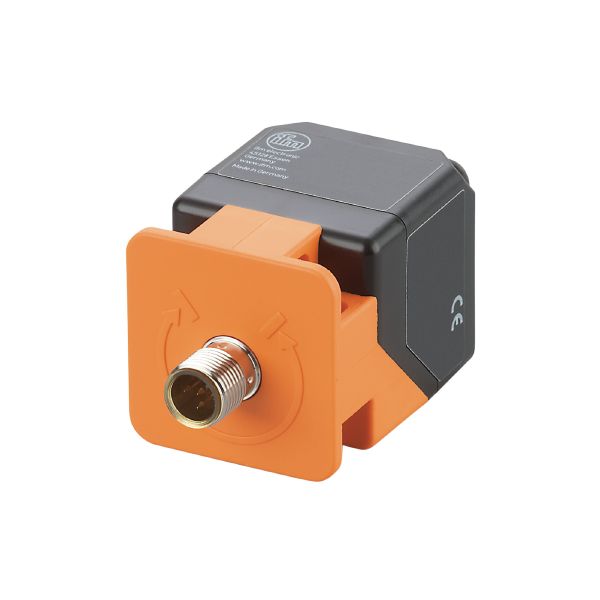

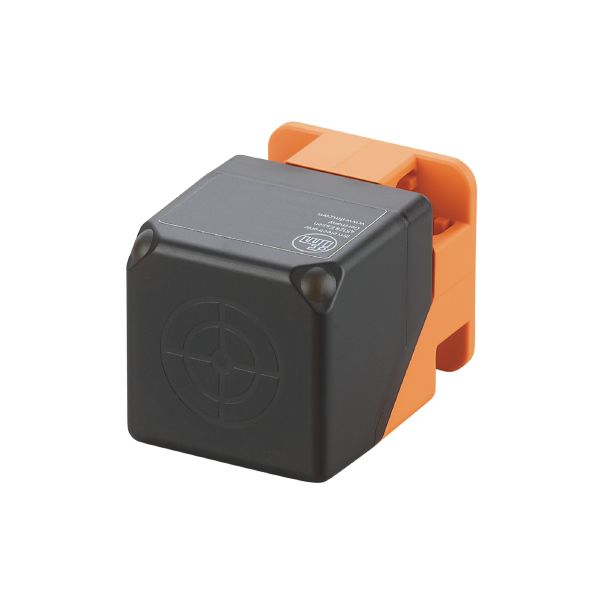

Ifm DTA201 Rfid Read/Write Antenna With As-Interface
$871.11 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm DTA201 Rfid Read/Write Antenna With As-Interface is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm DTA201 Rfid Read/Write Antenna With As-Interface
$871.11 USD
Unit price
/
Unavailable
Application
| Application | Detection of objects on transport equipment | |
|---|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Singapore; China | |
| Note on radio approval |
|
Electrical data
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Current consumption [mA] | < 75 |
| Protection class | III |
| Operating frequency [MHz] | 0,125 |
Outputs
| Electrical design | AS-i |
|---|
Monitoring range
| Travel speed [m/s] | < 0.5 | |||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Distance read/read head front | 150 | |||||||||
| Distance read/read head side | 150 | |||||||||
| Note on distance read/read head |
|
|||||||||
| Distance write/read head front [mm] | 300 | |||||||||
| Distance write/read head side [mm] | 300 | |||||||||
| Note on distance write/read head |
|
|||||||||
| Distance to the ID tag [mm] |
|
Interfaces
| Communication interface | AS-i |
|---|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; IP 69K |
Tests / approvals
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 456 |
AS-i classification
| AS-i I/O configuration [hex] | 7 |
|---|---|
| AS-i ID code [hex] | 3 |
| AS-i certificate | 87202 |
Mechanical data
| Weight [g] | 168.4 |
|---|---|
| Housing | rectangular |
| Sensing face | 5 positions selectable |
| Dimensions [mm] | 40 x 40 x 54 |
| Material | PA |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12, rotatable, locking; coding: A |
|---|
