Ifm | SKU:
IF-CR711S-E

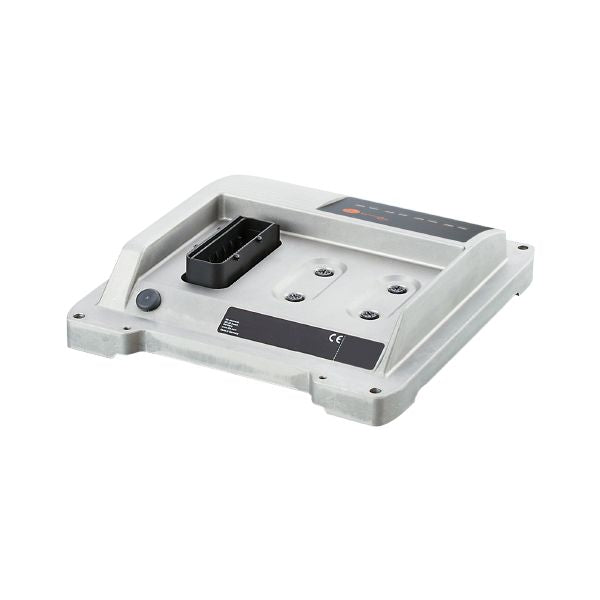

Ifm CR711S Ecomatcontroller
$1,571.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm CR711S Ecomatcontroller is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm CR711S Ecomatcontroller
$1,571.67 USD
Unit price
/
Unavailable
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Current consumption [mA] | < 400 |
| Reverse polarity protection | yes |
Inputs / outputs
| Total number of inputs and outputs | 60 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 32; Number of analog inputs: 16; Number of frequency inputs: 8; Number of resistor inputs: 4; Number of digital outputs: 27; Number of analog outputs: 1 |
Inputs
| Number of frequency inputs | 8 |
|---|---|
| Number of resistor inputs | 4 |
| Number of digital inputs | 32 |
| Number of analog inputs | 16 |
| Analog input (current) [mA] | 0...20 |
| Analog input (voltage) [V] | 0...32 |
Outputs
| Number of digital outputs | 27 |
|---|---|
| Number of analog outputs | 1 |
| Analog voltage output [V] | 0...10 |
| Short-circuit protection | yes |
| Number of PWM outputs | 27 |
| Number of PWM-I outputs | 18 |
| Number of outputs with H-bridge | 3 |
Software / programming
| Parameter setting options | input/output functions |
|---|---|
| PLC function to IEC 61131-3 | yes |
Interfaces
| Number of CAN interfaces | 4 |
|---|---|
| Number of Ethernet interfaces | 1 |
| Number of R232 interfaces | 1 |
Operating conditions
| Storage temperature [°C] | -40...85 |
|---|---|
| Protection | IP 65; IP 67; (in conjunction with a corresponding connector) |
Safety classification
| Complies with the requirements |
|
|---|
Mechanical data
| Weight [g] | 1525.5 |
|---|---|
| Type of mounting | free-standing |
| Dimensions [mm] | 219 x 47 x 203 |
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
