Ifm | SKU: IF-CR403S-E | Barcode: DOES NOT APPLY

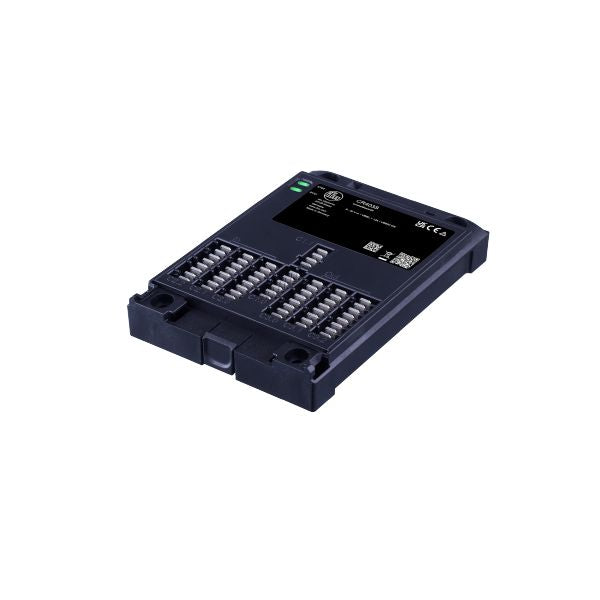

Ifm CR403S Programmable Controller For Mobile Machines

Name: Ifm CR403S Programmable Controller For Mobile Machines
Availability: BackOrder

$416.67 USD

Shipping calculated at checkout.

Ifm CR403S Programmable Controller For Mobile Machines is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Total number of inputs	12
Total number of outputs	12
Communication interface	CAN
Protection	IP 20

Electrical data

Operating voltage [V]	8...32 DC
Nominal voltage DC [V]	12 / 24
Power consumption [W]	8; (VBB30)
Reverse polarity protection	yes; (VBB30; VBB0, VBB1: in case of supply via the on-board system / battery)

Inputs / outputs

Total number of inputs and outputs	24

Inputs

Total number of inputs	12
Number of frequency inputs	4
Number of resistor inputs	4
Number of digital inputs	12
Number of analog inputs	8

Digital inputs, frequency signal (IN FREQUENCY-B)

Number

Plug C2.0

IN0400, IN0401

IN0500, IN0501

Frequency input

function type	Frequency, Zykluszeit
software mode	IN_PERIOD_RATIO_CSO
	IN_PERIOD_RATIO_CSI
input range [V]	0...32
Frequency [Hz]	0,01...5000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	Frequency, Zykluszeit
software mode	IN_PERIOD_RATIO_US_CSO
	IN_PERIOD_RATIO_US_CSI
input range [V]	0...32
Frequency [Hz]	0,1...5000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	Frequency, Zykluszeit
software mode	IN_FREQUENCY_CSO
	IN_FREQUENCY_CSI
input range [V]	0...32
Frequency [Hz]	0,5...30000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	pulse
software mode	IN_COUNT_CSO
	IN_COUNT_CSI
input range [V]	0...32
Frequency [Hz]	0...30000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	pulse, incremental
software mode	IN_INC_ENCODER_CSO
	IN_INC_ENCODER_CSI
input range [V]	0...32
Frequency [Hz]	0...5000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Frequency input

function type	phase
software mode	IN_PHASE_CSO
	IN_PHASE_CSI
input range [V]	0...32
Frequency [Hz]	0,0625...5000
Switching level high [V]	> 70 % VBB30
Switching level low [V]	< 30 % VBB30
input resistance [Ω]	10000
Accuracy	± 10 µs

Analog input

function type	Voltage
software mode	IN_VOLTAGE_10
input range [V]	0...10
input resistance [Ω]	87600
Resolution	12 Bit
Accuracy	± 100 mV
input frequency [Hz]	< 330
diagnostic level low	0 V; (configurable)
diagnostic level high	10 V; (configurable)

Digital input

function type	binary, High-Side
software mode	IN_DIGITAL_CSO
input range [V]	0...32
Switching level high [V]	> 65 % VBB30; (configurable)
Switching level low [V]	< 25 % VBB30; (configurable)
Resolution	12 Bit
Accuracy	± 960 mV
input frequency [Hz]	< 330
input resistance [Ω]	10000
diagnostic level low	0 % VBB30; (configurable)
diagnostic level high	100 % VBB30; (configurable)

Digital input

function type	binary, low-side
software mode	IN_DIGITAL_CSI
	IN_DIGITAL_CSI_NAMUR
	IN_DIGITAL_CSI_BLANKING
input range [V]	0...32
Switching level high [V]	> 70 % VBB30; (configurable)
Switching level low [V]	< 30 % VBB30; (configurable)
Resolution	12 Bit
