Ifm | SKU:
IF-CR3133-E

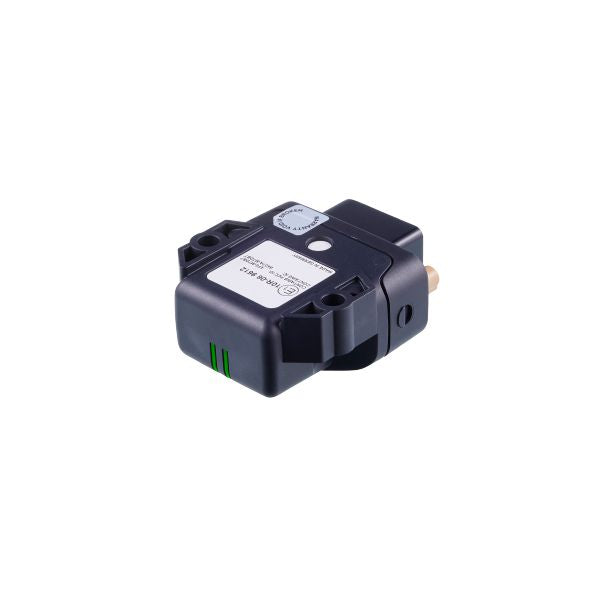

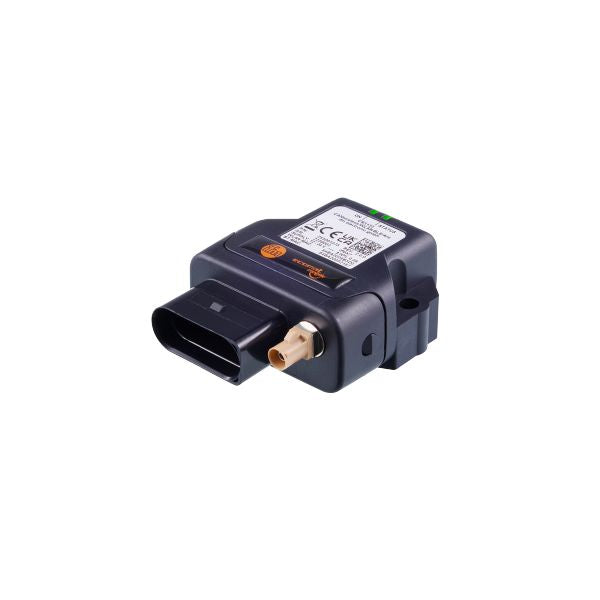

Ifm CR3133 Canwireless With External Antenna Connection
$487.78 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm CR3133 Canwireless With External Antenna Connection is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm CR3133 Canwireless With External Antenna Connection
$487.78 USD
Unit price
/
Unavailable
Electrical data
| Operating voltage [V] | 6...36 DC |
|---|---|
| Nominal voltage DC [V] | 12 / 24 |
| Nominal voltage tolerance [%] | 50 |
| Current consumption [mA] | < 100; (Normal operation; sleep mode: < 1 mA) |
| Reverse polarity protection | yes; (< 36 V DC) |
| Overvoltage protection | yes; (< 36 V DC) |
| Internal resistance (Ri) [Ω] | 20000 |
Inputs / outputs
| Number of inputs and outputs | Number of analog inputs: 2; Number of digital outputs: 1 |
|---|
Inputs
| Number of analog inputs | 2 |
|---|---|
| Analog input (voltage) [V] | 0...15 |
| Resolution of analog input | 12 Bit |
| Precision analog input [%] | ± 1,0 |
Outputs
| Number of digital outputs | 1 |
|---|---|
| Voltage range DC [V] | 6...36 |
| Permanent current rating of switching output DC [mA] | 500 |
| Switching frequency DC [Hz] | < 10 |
Measuring/setting range
| Sampling rate [Hz] | 20 |
|---|
Interfaces
| Communication interface | CAN; WLAN; Bluetooth |
|---|---|
| Number of CAN interfaces | 2 |
Bluetooth
| Transmission standard | EDR 2.1; EDR 5.0 |
|---|---|
| Transmission power [mW] | 22.39 |
CAN
| Interface | CAN Interface 2.0 A/B ISO 11898 |
|---|
WLAN
| Transmission standard | IEEE 802.11 a/b/g/n |
|---|---|
| Frequency band | 2,4 GHz; 5 GHz |
| Transmission power [mW] | 53.23; (2,4 GHz; 22,39 mW: 5 GHz; Antenna integrated) |
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Protection | IP 6K7 |
Tests / approvals
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Standard | EN 62368-1; EN 62311; EN 300328; EN 300440; EN 301893; EN IEC 63000 |
Mechanical data
| Weight [g] | 142.6 |
|---|---|
| Material | housing: PA6/6.6 black |
Displays / operating elements
| Display |
|
|---|
Hardware
| Processor | ARM Cortex M7 based STM32 (400 MHz) |
|---|---|
| Working memory | Program Flash: 1 MB FRAM: 8 KB SRAM: 564 KB |
| Mass storage | 16 MB |
Remarks
| Pack quantity | 1 pcs. |
|---|

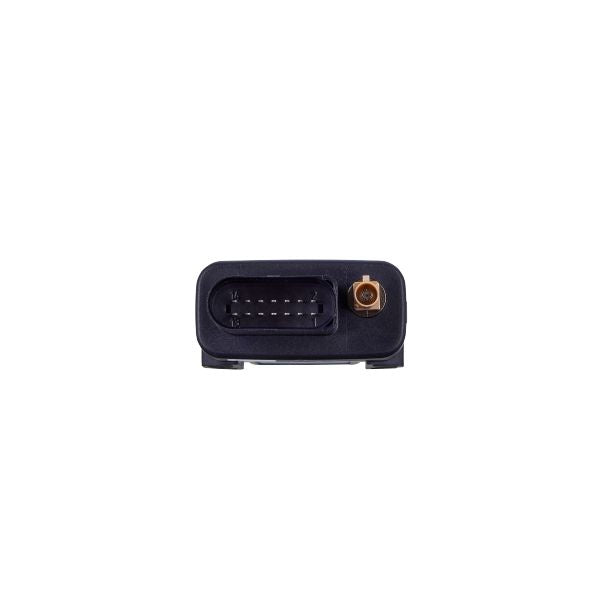

Electrical connection - WLAN / Bluetooth
| Connector: FAKRA I |
