Ifm | SKU:
IF-CR2040-E

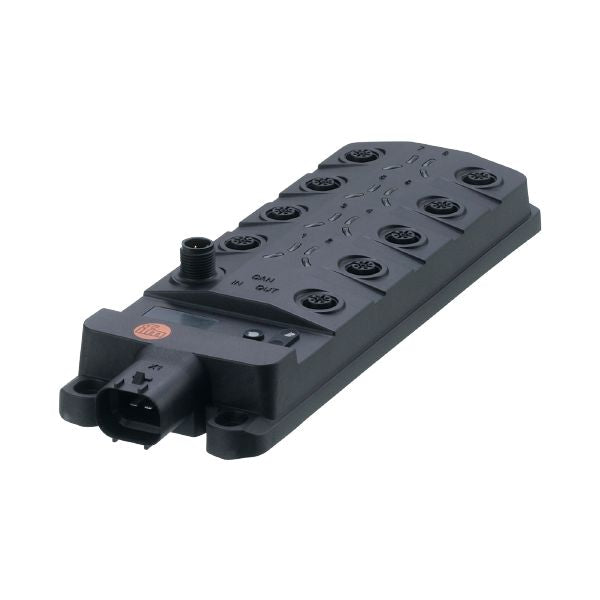

Ifm CR2040 Input Module For Mobile Machines
$446.67 USD
Unit price
/
Unavailable
Shipping calculated at checkout.
Ifm CR2040 Input Module For Mobile Machines is backordered and will ship as soon as it is back in stock.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Subscribe to our newsletter
Sign up for exclusive offers.
Ifm CR2040 Input Module For Mobile Machines
$446.67 USD
Unit price
/
Unavailable
Application
| System | gold-plated contacts |
|---|
Electrical data
| Operating voltage [V] | 8...32 DC |
|---|---|
| Nominal voltage DC [V] | 12 / 24 |
| Current consumption [mA] | 188; (24 V DC: 105 mA; maximum: 300 mA) |
| Reverse polarity protection | yes |
| Overvoltage protection | yes; (36 V: t ≤ 10 s) |
Inputs / outputs
| Total number of inputs and outputs | 16 |
|---|---|
| Number of inputs and outputs | Number of digital inputs: 16; Number of analog inputs: 8; Number of frequency inputs: 4; Number of resistor inputs: 4 |
Inputs
| Total number of inputs | 16 |
|---|---|
| Number of frequency inputs | 4 |
| Number of resistor inputs | 4 |
| Number of digital inputs | 16 |
| Number of analog inputs | 8 |
| Analog input (current) [mA] | 0...20 |
| Analog input (voltage) [V] | 0...32 |
Software / programming
| Parameter setting options | CODESYS 2.3 |
|---|---|
| PLC function to IEC 61131-3 | yes |
Interfaces
| Communication interface | CAN | ||
|---|---|---|---|
| Number of CAN interfaces | 2 | ||
| Transmission rate | 20 kBit/s... 1 MBit/s | ||
| Protocol | CANopen; SAE J1939; free protocol | ||
| Profile | CiA DS 301 Version 4; CiA DS 401 Version 1.4 | ||
| Interface | CAN Interface 2.0 A/B ISO 11898 | ||
| Factory settings |
|
Operating conditions
| Ambient temperature [°C] | -40...85 |
|---|---|
| Storage temperature [°C] | -40...85 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 65; IP 67 |
| Degree of soiling | 2 |
Tests / approvals
| EMC |
|
||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Continuous shock resistance |
|
||||||||||||||||||||||
| Fast temperature changes |
|
||||||||||||||||||||||
| Vibration resistance |
|
||||||||||||||||||||||
| MTTF [years] | 98 |
Mechanical data
| Weight [g] | 635.5 |
|---|---|
| Type of mounting | mounting via screws |
| Dimensions [mm] | 234 x 76 x 37 |
| Material | housing: PA6/6.6; Display: PA; Pushbuttons: silicone |
Displays / operating elements
| Display |
|
||||
|---|---|---|---|---|---|
| Operating elements |
|
Hardware
| Processor | Freescale PowerPC 50 MHz |
|---|---|
| Working memory | 592 kByte |
| Mass storage | 1536 kByte Flash / 1 kByte FRAM |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - CAN IN
| CAN IN | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
Electrical connection - CAN OUT
| CAN OUT | Connector: 1 x M12; coding: A; Contacts: gold-plated |
|---|
Electrical connection - Inputs
| Con. 1...8 | Connector: 8 x M12; coding: A; Contacts: gold-plated |
|---|
Electrical connection - supply / CAN interface
| X1 | Connector: 1 x AMP connector (TE-AMP 1745078-1); Contacts: tin-plated |
|---|
