Ifm | SKU: IF-CR1300-E | Barcode: DOES NOT APPLY

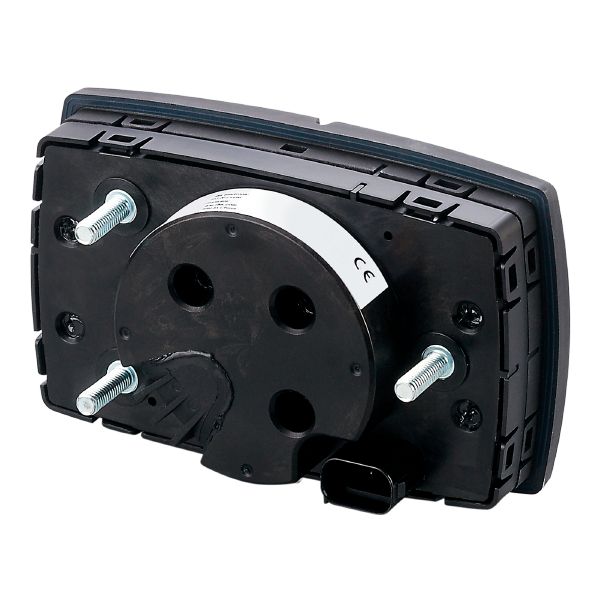

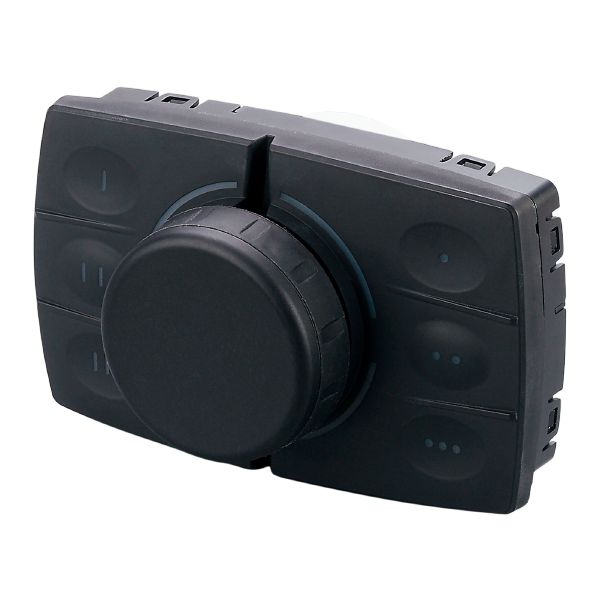

Ifm CR1300 Pushbutton Module W/ Knob, Push And Joystick Function In Two Axes

Name: Ifm CR1300 Pushbutton Module W/ Knob, Push And Joystick Function In Two Axes
Availability: BackOrder

$298.33 USD

Shipping calculated at checkout.

Ifm CR1300 Pushbutton Module W/ Knob, Push And Joystick Function In Two Axes is backordered and will ship as soon as it is back in stock.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Subscribe to our newsletter

Product characteristics

Communication interface	CAN
Dimensions [mm]	136 x 86 x 73.5

Application

Design	installation in panels or panel cutouts

Electrical data

Operating voltage [V]	9...32 DC
Nominal voltage DC [V]	12 / 24
Current consumption [mA]	< 400; (13,5 V DC)
Reverse polarity protection	yes

Interfaces

Communication interface	CAN
Number of CAN interfaces	1

CAN

Protocol

J1939

Factory settings

Baud rate: 250

node ID: 135

Note on interfaces

dynamic address allocation is supported

Operating conditions

Ambient temperature [°C]	-40...85
Storage temperature [°C]	-40...85
Max. relative air humidity [%]	90
Max. height above sea level [m]	4000
Protection	IP 65

Tests / approvals

EMC

UN/ECE-R10 Noise emission and noise interference:	100 V/m
DIN EN 61000-6-2 ESD
DIN EN 61000-6-4 Burst
ISO 7637-2 pulse 1	severity level 4 / function state C (24 V)
ISO 7637-2 pulse 2a	severity level 4 / function state A (24 V)
ISO 7637-2 pulse 2b	severity level 4 / function state C (24 V)
ISO 7637-2 pulse 3a	severity level 4 / function state A (24 V)
ISO 7637-2 pulse 3b	severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4	severity level 4 / function state B (24 V)
ISO 7637-2 pulse 5b	severity level 4 / function state A (24 V)
ISO 7637-2 pulse 4	severity level 4 / function state B (12 V)

Continuous shock resistance

ISO 16750-3

30 g 6 ms / 24000 shocks

Fast temperature changes

EN 60068-2-30 damp heat: cyclical	55 ° C upper temperature limit / 6 cycles
EN 60068-2-78 damp heat: constant	40 ° C 93 % rH / test period 21 days

Vibration resistance

ISO 16750-3 Test VII	random, mounting place car body
EN 60068-2-6 Sinus	10...500 Hz / 10 cycles/axis, sine

Salt spray test

EN 60068-2-52 Salt spray

severity level 3 / motor vehicle

MTTF [years]

119

Mechanical data

Weight [g]

459.6

Weight (without accessories and packaging) [g]

400

Dimensions [mm]

136 x 86 x 73.5

Material

housing: PC/ABS; silicone coating: PA66 transparent

Information on service life

Pushbuttons:	> 100000 activations
knob (rotation by 360°):	> 100000 cycles
knob (push function):	> 100000 activations
knob (tilting per axis):	> 100000 activations

Displays / operating elements

Display

LED, multi-color

Operating elements

6	freely programmable backlit function keys
1	$Drehknopf_mit_Tast_und_Joystick_Funktion_in_zwei_Achsen
	24 stops per revolution

Remarks

Pack quantity	1 pcs.
