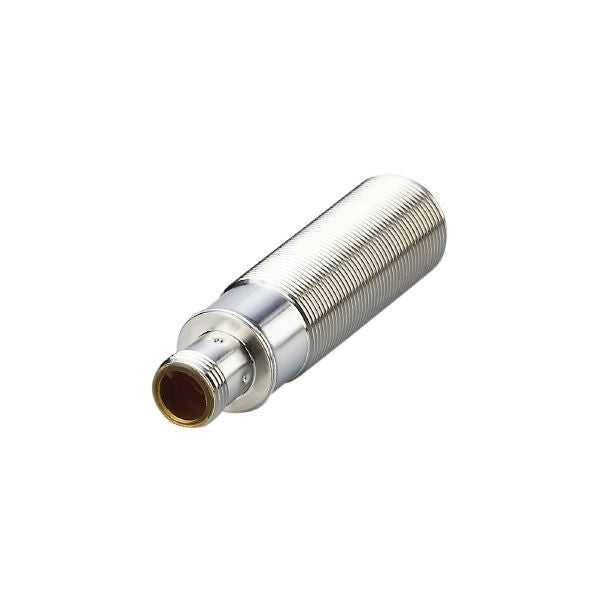

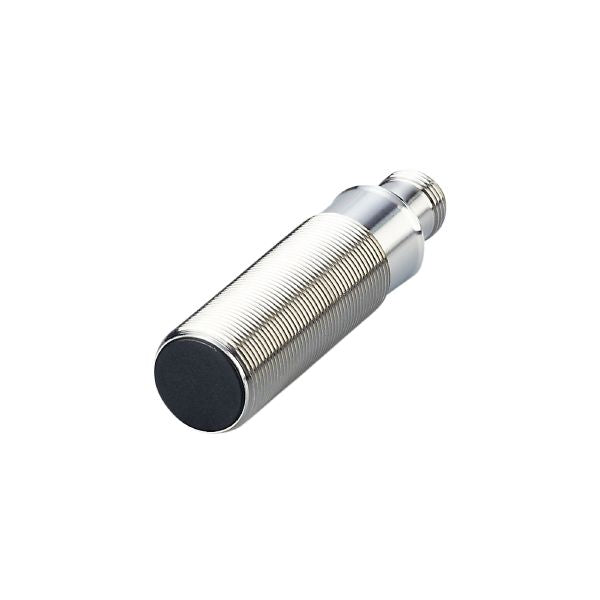

Ifm ANT424 Rfid Read/Write Head Hf
Country Of Origin:
| Application | Detection of objects on transport equipment | |
|---|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; China; Taiwan; India; Singapore; Ukraine | |
| Note on radio approval |
|
| Operating voltage [V] | 19.2...28.8 DC; (Supply only via the DTE10x evaluation unit (to EN 60950-1)) |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Operating frequency [MHz] | 13,56 |
| RFID standard | ISO 15693 |
| Distance write/read head front [mm] | 100 | |||
|---|---|---|---|---|
| Distance write/read head side [mm] | 60 | |||
| Distance to the ID tag [mm] |
|
| Communication interface | DATA / DTE10x |
|---|
| Ambient temperature [°C] | -20...60 |
|---|---|
| Storage temperature [°C] | -25...80 |
| Protection | IP 67; IP 69K |
| Shock resistance |
|
||
|---|---|---|---|
| Vibration resistance |
|
| Weight [g] | 108.85 |
|---|---|
| Housing | tubular |
| Mounting | flush mountable |
| Dimensions [mm] | M18 x 1 / L = 70 |
| Thread designation | M18 x 1 |
| Material | housing: stainless steel; Protective cover: PPS; LED window: PEI |
| Display |
|
|---|
| Items supplied |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | Connector: 1 x M12; coding: A |
|---|
