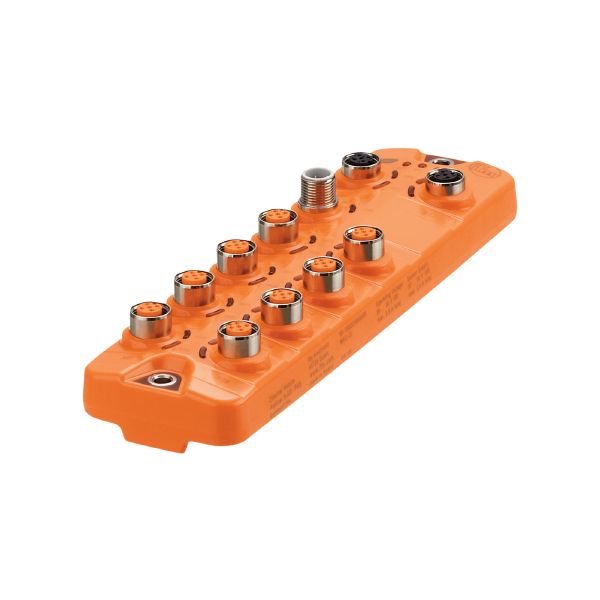

Ifm AL4002 Ethernet Module With Profinet Interface
Country Of Origin:
| Application | I/O modules for field applications |
|---|---|
| Daisy-chain function | fieldbus interface |
| Operating voltage [V] | 20...30 DC; (US ; to SELV/PELV) |
|---|---|
| Current consumption [mA] | 200...3900; (cULus: 200 ... 3500; US) |
| Protection class | III |
| Max. current load total [A] | 3.6 |
| Overall current rating (UL) [A] | 3.2 |
| Number of inputs and outputs | Number of digital inputs: 16 |
|---|
| Number of digital inputs | 16; (type 2 according to IEC 61131-2) |
|---|---|
| Switching level high [V] | 11...30 |
| Switching level low [V] | 0...5 |
| Digital inputs protected against short circuits | yes |
| Parameter setting options | Counter function | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Functions and parameters |
|
| Communication interface | Ethernet |
|---|
| Transmission standard | 100Base-TX | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Transmission rate | 100 MBit/s | ||||||||
| Protocol | PROFINET | ||||||||
| Factory settings |
|
||||||||
| Note on interfaces |
|
| Ambient temperature [°C] | -25...60 | ||||
|---|---|---|---|---|---|
| Storage temperature [°C] | -25...85 | ||||
| Max. relative air humidity [%] | 90 | ||||
| Protection | IP 65; IP 66; IP 67 | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Degree of soiling | 2 | ||||
| Chemical media |
|
| EMC |
|
||||
|---|---|---|---|---|---|
| Shock resistance |
|
||||
| Vibration resistance |
|
||||
| MTTF [years] | 130 |
| Weight [g] | 406.9 |
|---|---|
| Material | housing: PA orange; Socket: brass nickel-plated |
| Sealing material | FKM |
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| IN / OUT X21, X22 | Connector: M12; coding: D; sealing: FKM |
|---|
| Digital Input X01...X08 | Connector: M12; coding: A |
|---|
| X31 | Connector: M12; coding: A |
|---|
