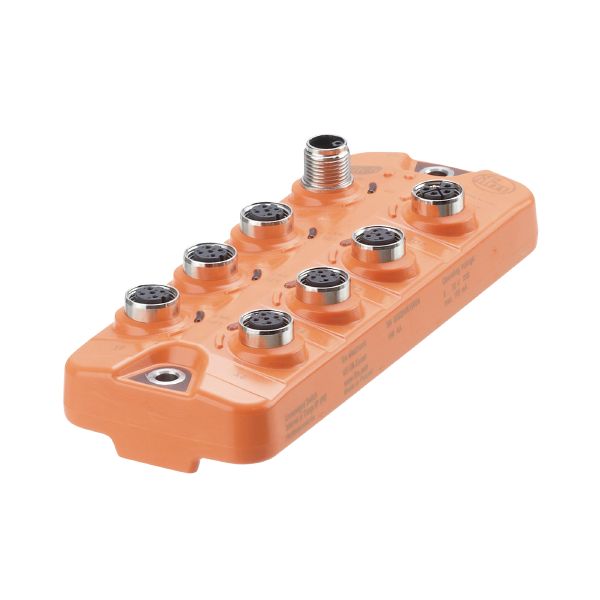

Ifm AL3150 Ethernet Switch
Country Of Origin:
| Design | unmanaged switch for field applications |
|---|---|
| Application | for TCP/IP networks; for EtherNet/IP networks; for Modbus TCP networks |
| Daisy-chain function | voltage supply |
| Operating voltage [V] | 8...32 DC; ((US ; to SELV/PELV)) |
|---|---|
| Nominal voltage DC [V] | 12 / 24 |
| Current consumption [mA] | 100; (US; 24 V: 50 mA) |
| Protection class | III |
| Reverse polarity protection | yes |
| Communication interface | Ethernet | ||||||||
|---|---|---|---|---|---|---|---|---|---|
| Number of Ethernet interfaces | 6 | ||||||||
| Transmission standard | 10Base-T; 100Base-TX | ||||||||
| Transmission rate | 10 MBit/s; 100 MBit/s | ||||||||
| Note on interfaces |
|
| Ambient temperature [°C] | -25...70 | ||||
|---|---|---|---|---|---|
| Storage temperature [°C] | -25...85 | ||||
| Max. relative air humidity [%] | 90 | ||||
| Max. height above sea level [m] | 4000 | ||||
| Protection | IP 65; IP 66; IP 67 | ||||
| Protection rating (NEMA 250) | 6P | ||||
| Degree of soiling | 2 | ||||
| Chemical media |
|
| EMC |
|
||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Shock resistance |
|
||||||||||||||||||||||||||||||||
| Fast temperature changes |
|
||||||||||||||||||||||||||||||||
| Vibration resistance |
|
| Weight [g] | 308.55 |
|---|---|
| Material | housing: PA orange; Socket: brass nickel-plated |
| Sealing material | FKM |
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| X1...X6 | Connector: 6 x M12; coding: D; sealing: FKM |
|---|
| XD1 | Connector: 1 x M12; coding: L |
|---|
| XD2 | Connector: 1 x M12; coding: L; sealing: FKM |
|---|
