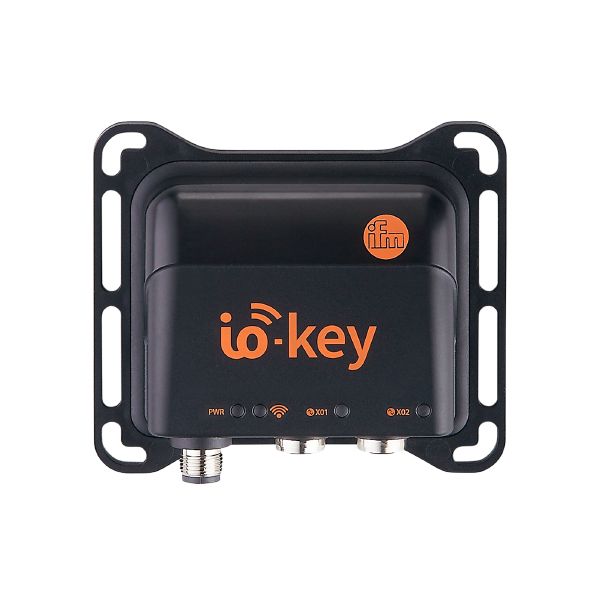

Ifm AIK050 Wireless Iot Gateway
Ifm AIK050 Wireless Iot Gateway is backordered and will ship as soon as it is back in stock.
As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.
🚚 We Ship Worldwide! Get your order delivered anywhere.
Delivery And Shipping
Delivery And Shipping
Both Standard and Express shipping options are available at checkout.
Tariffs And Fees
Tariffs And Fees
Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.
Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.
Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.
Subscribe to our newsletter
Sign up for exclusive offers.
Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.
Ifm AIK050 Wireless Iot Gateway
Country Of Origin:
| Application | Sensor data collected and sent to the ifm cloud via radio transmission | |
|---|---|---|
| Radio approval for | USA; Canada; EU/RED; Australia; Japan; South Africa | |
| Note on radio approval |
|
| Operating voltage [V] | 18...30 DC |
|---|---|
| Current consumption [mA] | < 2000 |
| Power consumption [W] | 8.6 |
| Protection class | III |
| Reverse polarity protection | yes |
| Current rating per port [A] | 0.5; (IO-Link port) |
| Antenna gain [dB] | 3 |
|---|
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
| Number of digital outputs | 2 |
|---|---|
| Max. current load per output [mA] | 200 |
| Parameter setting options | dashboard display with alarm functions via email or text message |
|---|
| Communication interface | IO-Link; Mobile networks; Bluetooth |
|---|
| Transmission standard | BLE 5.0 | |
|---|---|---|
| Frequency band | 2402...2480 MHz | |
| Transmission power [mW] | 2.51 | |
| Usage type | service interface | |
| Note on interfaces |
|
| Number of ports | 2 |
|---|---|
| Unterstützte IO-Link Revision | 1.0; 1.1 |
| Transmission type | COM1 (4,8 kBaud); COM2 (38,4 kBaud); COM3 (230,4 kBaud) |
| Transmission standard | NarrowBand-IoT; 2G quadband GSM; LTE Cat-M1 |
|---|---|
| Frequency band | B1(2100); B2(1900); B3(1800); B4(AWS1700); B5(850); B8(900); B12(700); B18(800); B19(800); B20(800); B26(850); B28(700) |
| Ambient temperature [°C] | -20...50 |
|---|---|
| Storage temperature [°C] | -40...60 |
| Max. height above sea level [m] | 3000 |
| Protection | IP 65 |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||
| Shock resistance |
|
||||||
| Radio approval | EN 301511 EN 301908-1 EN 301908-13 EN 300328 |
| Weight [g] | 152.6 |
|---|---|
| Material | housing: ABS |
| Display |
|
|---|
| Remarks |
|
|
|---|---|---|
| Pack quantity | 1 pcs. |
| IO-Link Port 1 | Connector: 2 x M12; coding: A |
|---|
| Power | Connector: 1 x M12; coding: A |
|---|
