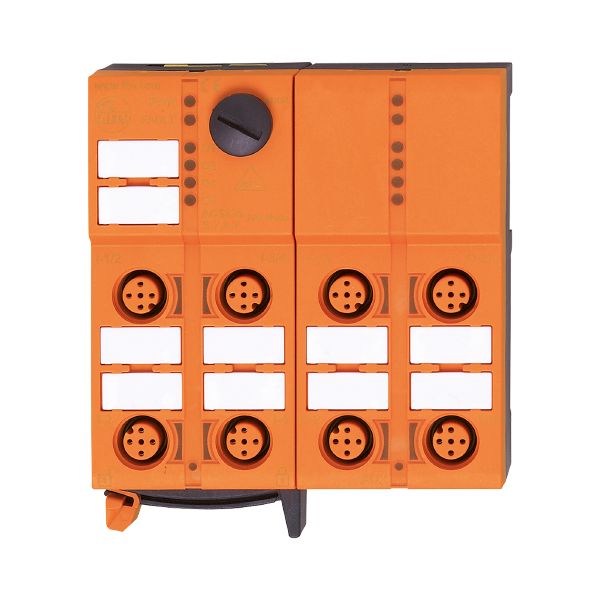

Ifm AC5292 As-Interface Classicline Module With Quick Mounting Technology

$355.56 USD

Shipping calculated at checkout.

Ifm AC5292 As-Interface Classicline Module With Quick Mounting Technology is backordered and will ship as soon as it is back in stock.

As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.

Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.

Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin:

Application

Application	field installation

Electrical data

Operating voltage [V]	26.5...31.6 DC; (cULus - Class 2 source required)
Max. current consumption from AS-i [mA]	30
Max. current load total [A]	3
Integrated watchdog	yes

Inputs / outputs

Number of inputs and outputs	Number of digital inputs: 4; Number of digital outputs: 3

Inputs

Number of digital inputs	4
Input circuit of digital inputs	PNP
Sensor supply of the inputs	AUX
Voltage supply [V]	20...30; (via flat cable)
Max. total current rating of inputs [mA]	1000
Input current High [mA]	6...10
Input current low [mA]	0...2
Switching level high [V]	> 11
Digital inputs protected against short circuits	yes

Outputs

Number of digital outputs	3
Circuit	PNP
Voltage range DC [V]	20...30; (to PELV; via flat cable)
Max. current load per output [mA]	1000; (utilization category DC-13 (control of electromagnets): 20 W (IEC 60947-5-1))
Short-circuit proof	yes
Electrically separated	yes
Actuator supply outputs	AUX

Operating conditions

Ambient temperature [°C]	-25...70
Protection	IP 67

Tests / approvals

EMC

EN 50295
IEC 61000-6-2

MTTF [years]

166

AS-i classification

AS-i version

2.11; 3.0

AS-i addressing

Addressing socket

Extended addressing mode

yes

AS-i master profile

M2; M3; M4

AS-i profile

S-7.A.E

AS-i I/O configuration [hex]

AS-i ID code [hex]

A.E

Data bits

Data bit	D0	D1	D2	D3
Input	1	2	3	4
Socket	I-1/2	I-1/2 I-2	I-3/4	I-3/4 I-4
Pin	4	2 4	4	2 4
Output	1	2	3	4
Socket	O-1/2	O-1/2 O2	O-3	-
Pin	4	2 4	4	-

Parameter bits

Parameter bit	Description
P0	not used
P1	peripheral fault indication	: 1	activated	* / 0	disabled
P2	not used
P3	not used

Mechanical data

Weight [g]	289.5
Type of mounting	AS-i flat cable connection
Material	PA; Piercing contacts: CuSn6 nickel-plated and tin-plated

Displays / operating elements

Display

Power	LED, green Voltage AUX > 7 V
errors	LED, red AUX 15 V ± 2 V
Function	LED, yellow

Electrical connection

Module connection	Flat cable

Accessories

Items supplied

lower part

Accessories (optional)

Protective cap: M12, E73004

Remarks

Pack quantity	1 pcs.

Electrical connection

	quick mounting technology for AS-i flat cable: ; three selectable directions

Electrical connection - Inputs

Connection	Connector: M12
