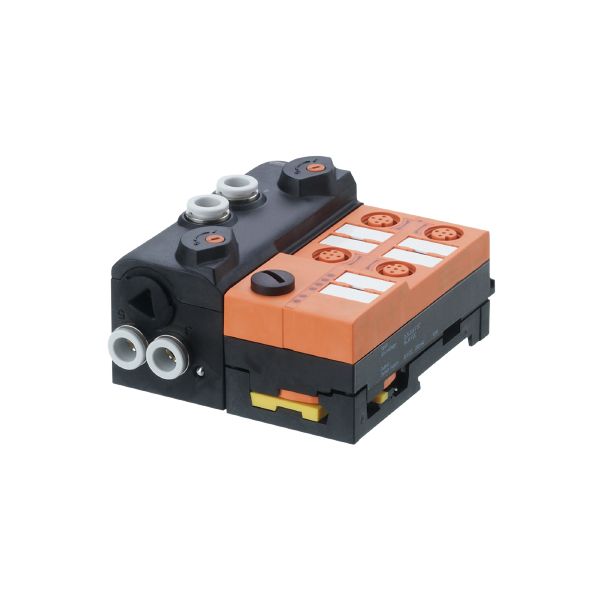

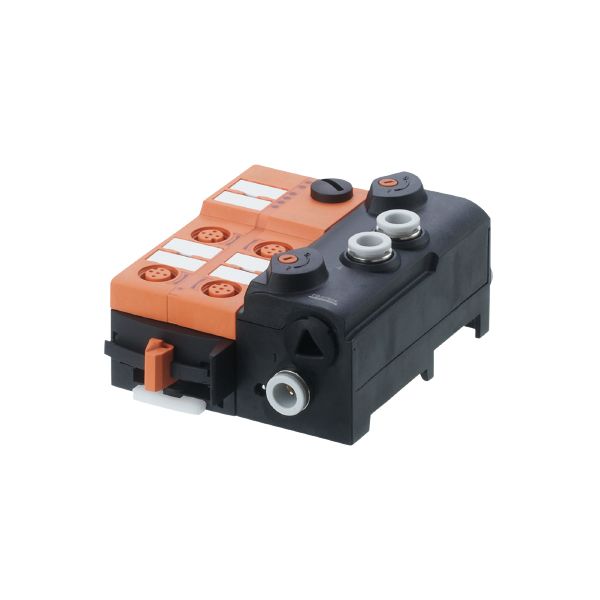

Ifm AC5251 As-Interface Airbox With Quick Mounting Technology
Country Of Origin: Germany
Description:
- Operating Voltage: 26.5...31.6 DC V
- Max. Current Consumption From AS-i: 280 mA
- Integrated Watchdog: Yes
- Number Of Digital Inputs: 4
- Number Of Pneumatic Outputs: 2
- Input Circuit Of Digital Inputs: PNP
- Sensor Supply Of The Inputs: AS-i
- Voltage Supply: 20...30 V (Via Flat Cable)
- Max. Total Current Rating Of Inputs: 200 mA
- Input Current High: 6...10 mA
- Input Current Low: 0...2 mA
- Switching Level High: > 11 V
- Digital Inputs Protected Against Short Circuits: Yes
- Number Of Pneumatic Outputs: 2 (Pneumatic NO/NC Selectable Output; Bistable)
- Actuator Supply Outputs: AS-i
- Ambient Temperature: -10...55°C
- Protection: IP 65, IP 67
-
