Ifm | SKU: IF-AC2923-E | Barcode: DOES NOT APPLY

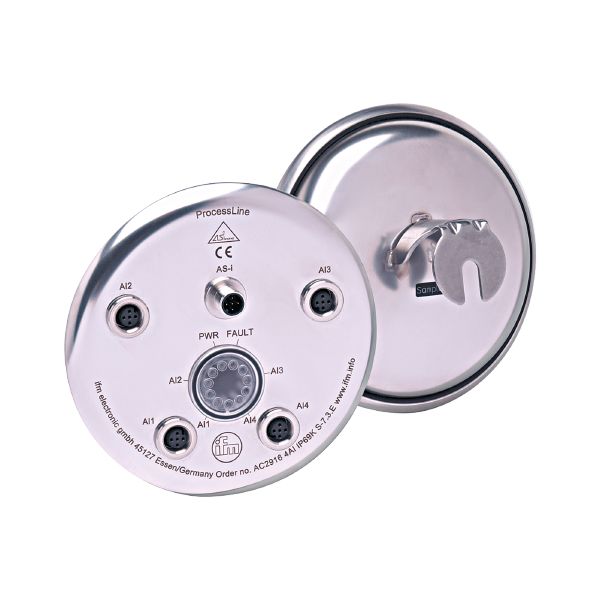

Ifm AC2923 As-Interface Processline Module

$908.89 USD

Shipping calculated at checkout.

Ifm AC2923 As-Interface Processline Module is backordered and will ship as soon as it is back in stock.

As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.

Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.

Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.

Subscribe to our newsletter

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin:

Application

Application	sanitary and wet areas in the food industry

Electrical data

Operating voltage [V]	26.5...31.6 DC
Max. current consumption from AS-i [mA]	450
Reverse polarity protection	yes

Inputs / outputs

Number of inputs and outputs	Number of analog inputs: 4

Inputs

Sensor supply of the inputs	AS-i
Number of analog inputs	4; (connection of 2-wire, 3-wire and 4-wire sensors)
Analog input (current) [mA]	4...20
Analog input (voltage) [V]	18...30
Max. voltage drop across load for nominal voltage [V]	10
Resolution of analog input	1 bit = 1 µA
Precision analog input [%]	0,5

Operating conditions

Ambient temperature [°C]	-5...70
Storage temperature [°C]	-25...85
Max. relative air humidity [%]	90; (linearly decreasing to 50 % (40 °C) non condensing)
Max. height above sea level [m]	2000
Protection	IP 68; IP 69K
Degree of soiling	2

Tests / approvals

EMC

EN 62026-2
EN 61000-6-2

MTTF [years]

AS-i classification

AS-i version	2.11; 3.0
Extended addressing mode	no
AS-i master profile	M3; M4
AS-i profile	S-7.3.E
AS-i I/O configuration [hex]	7
AS-i ID code [hex]	3.E
AS-i certificate	101108

Mechanical data

Weight [g]	625
Dimensions [mm]	Ø 137.3 / L = 80
Material	threaded bush: stainless steel (1.4404 / 316L); LED-Fenster: PC; O-ring: EPDM; Protective cap: PP

Displays / operating elements

Display

analog signal	LED, yellow Channels AI1...AI4
Power	LED, green AS-i
errors	LED, red

Electrical connection

Module connection	M12

Accessories

Accessories (optional)

Protective cap: M12, E70297

Flat cable insulation displacement connector:, E70455

Torque wrench:, E70390

Remarks

When the sensors and actuators are supplied from AS-i the load must not exceed a maximum of 380 mA.

The load for an individual sensor connection must not exceed 200 mA.

When connecting a 2-wire or 3-wire sensor without own supply there has to be an external link between pin 3 and pin 4.

The inputs (pins 2 and 4) are electrically separated and have no connection to AS-i.

The sensor supply (pins 1 and 3) is electrically connected to AS-i.

MEW = % of the final value of the measuring range

Pack quantity

1 pcs.

Electrical connection - AS-i

	Connector: 1 x M12; coding: A; Tightening torque: 1.2...1.4 Nm

Electrical connection - Process connection

	Connector: 4 x M12; coding: A; Tightening torque: 1.2...1.4 Nm
