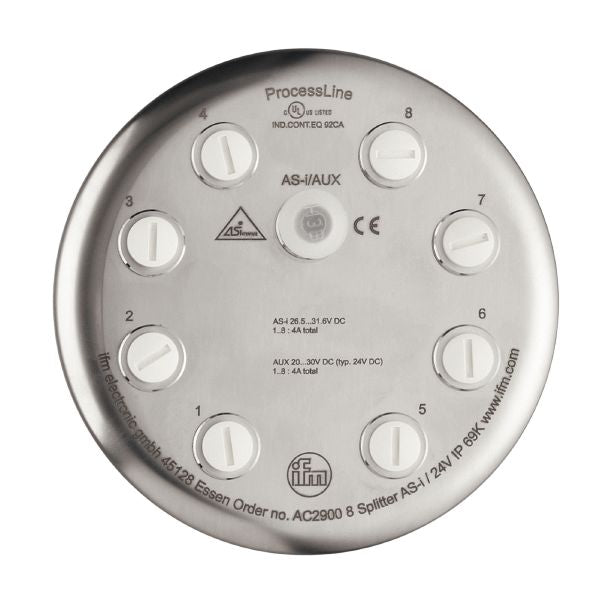

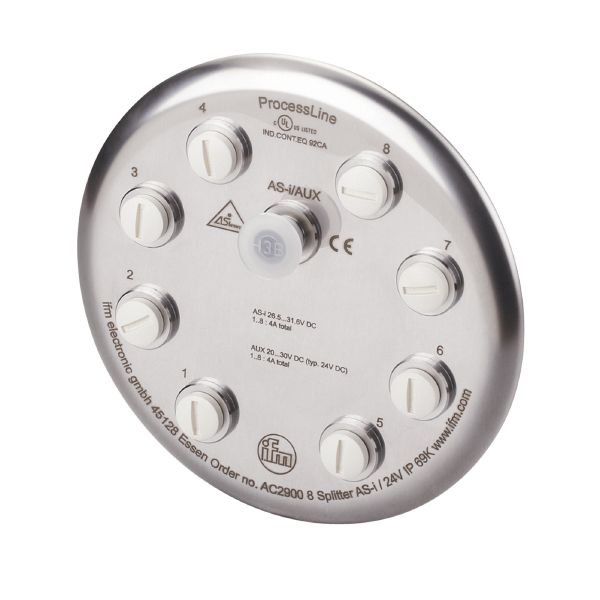

Ifm AC2900 As-Interface Processline Module
Country Of Origin:
| Application | sanitary and wet areas in the food industry |
|---|
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current load per module/slot [A] | 4; (AS-i: 4 A; AUX: 4 A) |
| Additional voltage supply [V] | 20...30 DC; (AUX) |
| Ambient temperature [°C] | -5...70 |
|---|---|
| Storage temperature [°C] | -5...70 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 68; IP 69K |
| Degree of soiling | 2 |
| EMC |
|
|---|
| Weight [g] | 613.5 |
|---|---|
| Dimensions [mm] | Ø 137.3 / L = 80 |
| Material | housing: stainless steel; O-ring: EPDM; Protective caps: PP |
| Sealing material | EPDM |
| Module connection | M12 |
|---|
| Items supplied |
|
|
|---|---|---|
| Accessories (optional) |
|
| Pack quantity | 1 pcs. |
|---|
| Connector: 8 x M12; coding: A; sealing: EPDM; Tightening torque: 1.2...1.4 Nm; Maximum cable length: 20 m |
| Connector: 1 x M12; coding: A; sealing: EPDM; Tightening torque: 1.2...1.4 Nm; Maximum cable length: 2 m |
