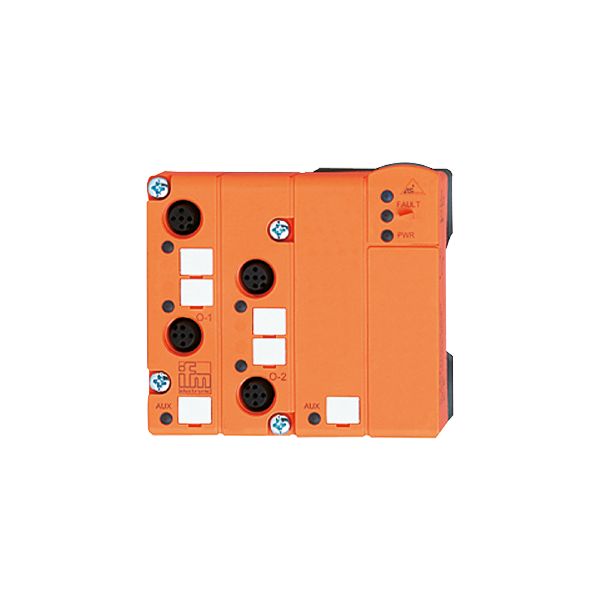

Ifm AC2518 As-Interface Classicline Module
Country Of Origin:
| Application | field installation |
|---|
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Max. current consumption from AS-i [mA] | 157 |
| Reverse polarity protection | yes |
| Additional voltage supply [V] | 24...30 DC; (AUX) |
| Additional voltage supply | optional |
| Max. current consumption from additional supply [mA] | 550; (AUX) |
| Number of inputs and outputs | Number of analog outputs: 4 |
|---|
| Precision analog input [%] | 0,5 |
|---|
| Number of analog outputs | 4; (connection of 2-wire actuator) |
|---|---|
| Analog current output [mA] | 0...20 |
| Max. load [Ω] | 600 |
| Resolution of analog output | 16 (1 bit = 1 µA) |
| Actuator supply outputs | AS-i / AUX |
| Ambient temperature [°C] | 0...70 |
|---|---|
| Storage temperature [°C] | -20...85 |
| Max. relative air humidity [%] | 90; (non condensing) |
| Max. height above sea level [m] | 2000 |
| Protection | IP 67 |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| MTTF [years] | 135 |
| AS-i addressing | Addressing socket; IR addressing possible |
|---|---|
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.3.6 |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | 3.6 |
| Weight [g] | 224.65 |
|---|---|
| Type of mounting | AS-i interface to FC/FC-E lower parts |
| Material | PBT |
| Tightening torque [Nm] | 0.6...0.8 |
| Display |
|
|---|
| Module connection | Flat cable |
|---|
| Accessories (optional) |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connector: M12; coding: A |
