Ifm  |  SKU: IF-AC2046-E  |  Barcode: DOES NOT APPLY

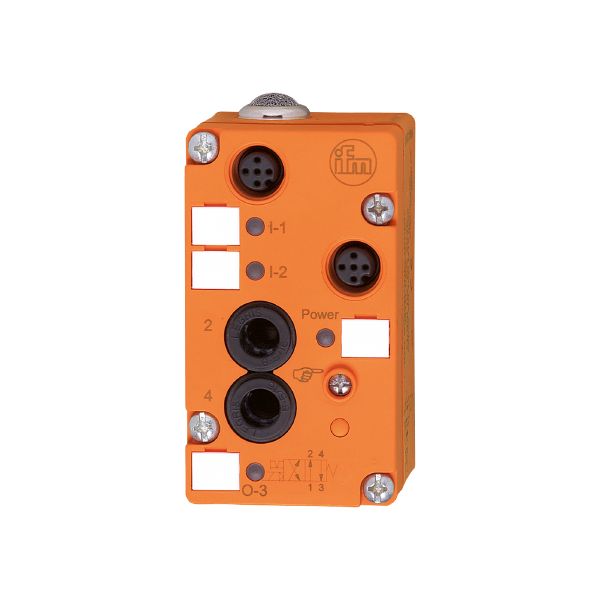

Ifm AC2046 As-Interface Airbox

$481.67 USD
Shipping calculated at checkout.

Ifm AC2046 As-Interface Airbox is backordered and will ship as soon as it is back in stock.


As a Canadian company, please note that any product made in China and imported into the United States will be subject to a 30% tariff, which must be paid separately upon delivery. Please refer to our Shipping Policy for full details.

🚚 We Ship Worldwide! Get your order delivered anywhere.

Delivery And Shipping

Both Standard and Express shipping options are available at checkout.

Tariffs And Fees

Items made in China and imported in the United States will be hit with a 30% fee upon arrival. Extra Fees Might Apply.

Items made in Canada and imported in the United States will be hit with a 35% fee upon arrival. Extra Fees Might Apply.

Items lacking a specified Country of Origin will be classified as originating from China by customs, resulting in a 30% import tax upon delivery in the U.S. Extra Fees Might Apply.

Subscribe to our newsletter

Sign up for exclusive offers.

Industrial Automation Parts is only an authorized distributor for DeLock and is not authorized for any other manufacturers. Manufacturer's warranty and support do not apply. Our IAP warranty of three months is applicable.

Country Of Origin:

Application
Application field installation
Electrical data
Operating voltage [V] 26.5...31.6 DC
Max. current consumption from AS-i [mA] 165
Integrated watchdog yes
Inputs / outputs
Number of inputs and outputs Number of digital inputs: 2; Number of pneumatic outputs: 1
Inputs
Number of digital inputs 2
Input circuit of digital inputs PNP
Sensor supply of the inputs AS-i
Voltage supply [V] 20...30
Max. total current rating of inputs [mA] 100
Input current High [mA] > 3
Input current low [mA] < 1.5
Switching level high [V] > 10
Digital inputs protected against short circuits yes
Outputs
Number of pneumatic outputs 1; (pneumatic NO/NC selectable output ; monostable)
Actuator supply outputs AS-i
Operating conditions
Ambient temperature [°C] 0...55
Note on ambient temperature
with special compressed air treatment: < 0 °C
Protection IP 65
Tests / approvals
EMC
EN 50295
AS-i classification
Extended addressing mode no
AS-i master profile M2; M3; M4
AS-i profile S-3.F
AS-i I/O configuration [hex] 3
AS-i ID code [hex] F
Data bits
Data bit D0 D1 D2 D3
Socket I-1 I-1 / I-2 O-3 -
Pin 4 2 / 4 - -
Mechanical data
Weight [g] 243.5
Type of mounting screw mounting
Material PBT
Pneumatic system 1 x 4/2-way seat valve
Operating pressure range [bar] 3...8
Operating pressure range [MPa] 0.3...0.8
Note on working pressure range
incl. possible pressure peaks
Air flow at 6/5 bar [l/min] 500
Air flow at 6/0 bar [l/min] 700
Permissible compressed air filtered (5 µm); lubricated (ISO-VG10) or not lubricated
Auxiliary air 90 % vacuum [bar] 3...8
Auxiliary air 90 % vacuum [MPa] 0.3...0.8
Tube fittings Legris LF 3000/8 / LF 3000/4
Exhaust integrated exhaust
Displays / operating elements
Display
Power LED, green
Function LED, yellow
Electrical connection
Module connection Flat cable
Remarks
Remarks
Please see the notes on compressed air and EMC/ESD under "Downloads"
Pack quantity 1 pcs.
Electrical connection
Connection contact pins to module lower part, FK / PG:
Connection Connector: M12
