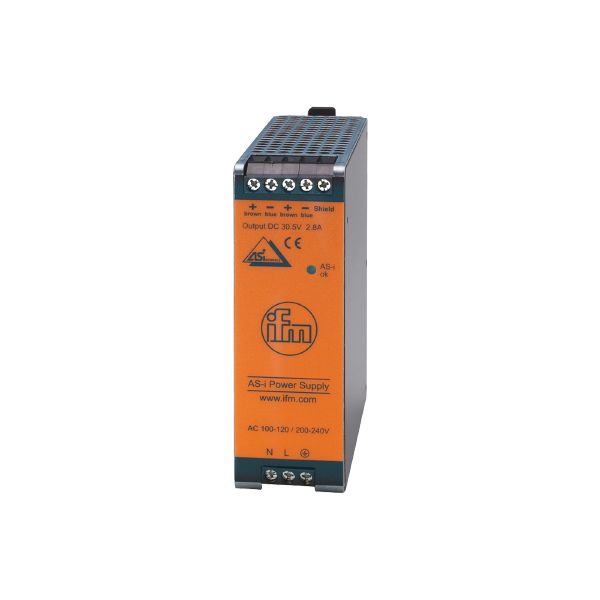

Ifm AC1256 As-Interface Power Supply
Country Of Origin: China
| Frequency AC [Hz] | 47...64 |
|---|---|
| Operating voltage tolerance [%] | 10 |
| Operating voltage [V] | automatic range selection |
| Nominal voltage AC [V] | 110 / 230 |
| Input voltage range AC [V] | 100...120 / 200...240 |
| Protection class | I |
| Overvoltage protection | yes; (< 36 V) |
| Max. power-on delay time [ms] | 900 |
| Output voltage AS-i [V] | 30.5; (to PELV; NEC Class II) |
| Output power (permanent) [W] | 85 |
| Power factor (nominal voltage 120 V AC / 60 Hz) | 0.56 |
| Power factor (nominal voltage 230 V AC / 50 Hz) | 0.47 |
| Number of output circuits | 1 |
| Output current AS-i [A] | 2.8 |
| Max. residual ripple [mV] | 50 |
| Switch-on peak current (nominal voltage 120 V AC / 60 Hz) [A] | 3 |
| Switch-on peak current (nominal voltage 230 V AC / 50 Hz) [A] | 3 |
| Inrush current limitation | yes |
| Efficiency (nominal voltage 120 V AC / 60 Hz) [%] | 86.9 |
| Efficiency (nominal voltage 230 V AC / 50 Hz) [%] | 88 |
| External input protection | ≤ B-10 A / ≤ C-6 A |
| Derating [W/K] | 0 (60...70 °C) |
| Mains buffering time (nominal voltage 120 V AC / 60 Hz) [ms] | 98 |
| Mains buffering time (nominal voltage 230 V AC / 50 Hz) [ms] | 96 |
| Input current (nominal voltage 120 V AC / 60 Hz) [A] | 1.44 |
| Input current (nominal voltage 230 V AC / 50 Hz) [A] | 0.86 |
| Power loss (nominal voltage 120 V AC / 60 Hz) [W] | 12.9 |
| Power loss (nominal voltage 230 V AC / 50 Hz) [W] | 11.6 |
| Integrated data decoupling | yes |
| Back feeding protection [V] | 35 |
| Short-circuit proof | yes |
|---|---|
| Overload protection | yes |
| Overload performance | constant output current |
| Parallel connection of outputs possible | no |
| Series connection of outputs possible | no |
| Ambient temperature [°C] | -25...70 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -40...85 | |
| Max. relative air humidity [%] | 95; (IEC 60068-2-30) | |
| Protection | IP 20 | |
| Degree of soiling | 2; (IEC 62103: conductive soiling not permitted) |
| EMC |
|
||||||
|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||
| Shock resistance |
|
| AS-i certificate | 98701 |
|---|
| Weight [g] | 625 |
|---|---|
| Type of mounting | rail; (TH35 (EN 60715)) |
| Dimensions [mm] | 124 x 40 x 120 |
| Material | steel sheet |
| Display |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | screw terminals: |
|---|
|
Block diagram
|
|
|---|
|
Output curve
|
|
|---|
|
Characteristic curve for degree of efficiency / power loss
|
|
|---|
|
Characteristic curve for derating
|
|
|---|
-
