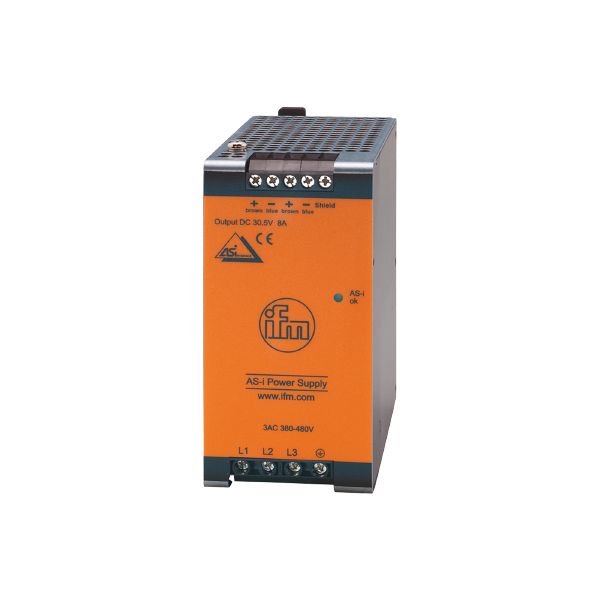

Ifm AC1253 As-Interface Power Supply
Country Of Origin:
| Frequency AC [Hz] | 47...64 | |
|---|---|---|
| Operating voltage tolerance [%] | 15...20 | |
| Nominal voltage AC [V] | 400 | |
| Input voltage range AC [V] | 380...480 | |
| Protection class | I | |
| Overvoltage protection | yes; (< 36 V) | |
| Max. power-on delay time [ms] | 90 | |
| Output voltage AS-i [V] | 30.5 | |
| Output power (permanent) [W] | 244 | |
| Output power (peak) [W] | 256 | |
| Note on output power (peak) [W] |
|
|
| Power factor (nominal voltage 400 V AC / 50 Hz) | 0.53 | |
| Power factor (nominal voltage 480 V AC / 50 Hz) | 0.52 | |
| Power reserve [%] | 5 | |
| Number of output circuits | 1 | |
| Output current AS-i [A] | 8 | |
| Max. residual ripple [mV] | 90 | |
| Switch-on peak current (nominal voltage 400 V AC / 60 Hz) [A] | 4 | |
| Switch-on peak current (nominal voltage 480 V AC / 50 Hz) [A] | 4 | |
| Efficiency (nominal voltage 400 V AC / 60 Hz) [%] | 92 | |
| Efficiency (nominal voltage 480 V AC / 50 Hz) [%] | 92.1 | |
| External input protection | ≤ B-6 A / ≤ C-3 A | |
| Derating [W/K] | 6 (60...70 °C) | |
| Mains buffering time (nominal voltage 400 V AC / 60 Hz) [ms] | 34 | |
| Mains buffering time (nominal voltage 480 V AC / 50 Hz) [ms] | 53 | |
| Input current (nominal voltage 400 V AC / 60 Hz) [A] | 0.7 | |
| Input current (nominal voltage 480 V AC / 50 Hz) [A] | 0.6 | |
| Power loss (nominal voltage 400 V AC / 60 Hz) [W] | 21.2 | |
| Power loss (nominal voltage 480 V AC / 50 Hz) [W] | 20.9 | |
| Integrated data decoupling | yes | |
| Back feeding protection [V] | 35 |
| Short-circuit proof | yes |
|---|---|
| Overload protection | yes |
| Overload performance | constant output current |
| Parallel connection of outputs possible | no |
| Series connection of outputs possible | no |
| Ambient temperature [°C] | -25...70 | |
|---|---|---|
| Note on ambient temperature |
|
|
| Storage temperature [°C] | -40...85 | |
| Max. relative air humidity [%] | 95; (IEC 60068-2-30) | |
| Protection | IP 20 | |
| Degree of soiling | 2; (IEC 62103: conductive soiling not permitted) |
| EMC |
|
||||||||
|---|---|---|---|---|---|---|---|---|---|
| Vibration resistance |
|
||||||||
| Shock resistance |
|
||||||||
| Power Factor Correction (PFC) | met |
| AS-i certificate | 98401 |
|---|
| Weight [g] | 950 |
|---|---|
| Type of mounting | rail; (TH35 (EN 60715)) |
| Dimensions [mm] | 124 x 62 x 120 |
| Material | steel sheet |
| Display |
|
|---|
| Pack quantity | 1 pcs. |
|---|
| Connection | screw terminals: |
|---|
|
Block diagram
|
|
|---|
|
Output curve
|
|
|---|
|
Characteristic curve for degree of efficiency / power loss
|
|
|---|
| Characteristic curve fo |
|---|
