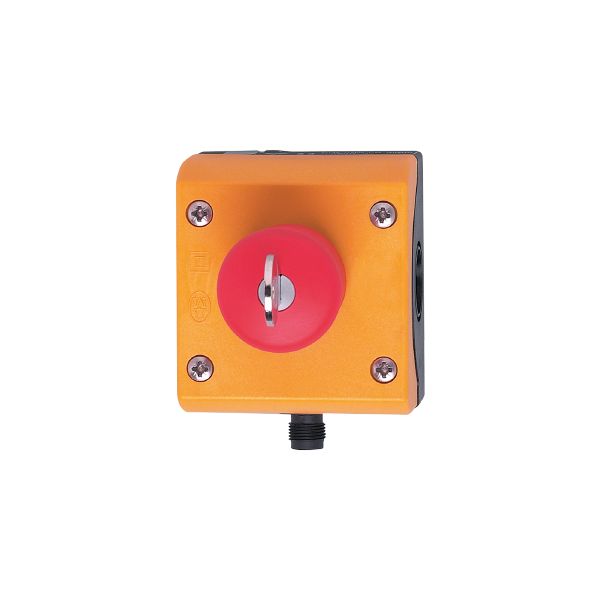

Ifm AC011S Key-Release E-Stop With Integrated As-I Connection
Country Of Origin:
| Application | fool-proof E-STOP to EN ISO 13850 |
|---|
| Operating voltage [V] | 26.5...31.6 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Input circuit of digital inputs | PNP |
|---|---|
| Sensor supply of the inputs | AS-i |
| Voltage supply [V] | 20 |
| Input current low [mA] | < 4 |
| Digital inputs protected against short circuits | yes |
| Electrical design | AS-i |
|---|
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
| Complies with the requirements |
|
||
|---|---|---|---|
| MIssion time TM [h] | 87600 |
| AS-i version | 2.1 |
|---|---|
| Extended addressing mode | no |
| AS-i master profile | M3; M4 |
| AS-i profile | S-7.B.E |
| AS-i I/O configuration [hex] | 7 |
| AS-i ID code [hex] | B.E |
| AS-i certificate | 74601 |
| Weight [g] | 343.5 |
|---|---|
| Dimensions [mm] | 105 x 72 x 93.5 |
| Material | PC-GF20 |
| Module connection | M12 |
|---|
| Pack quantity | 1 pcs. |
|---|
| quick mounting technology for AS-i flat cable, IP 67: | |
| Connector: M12; coding: A |
