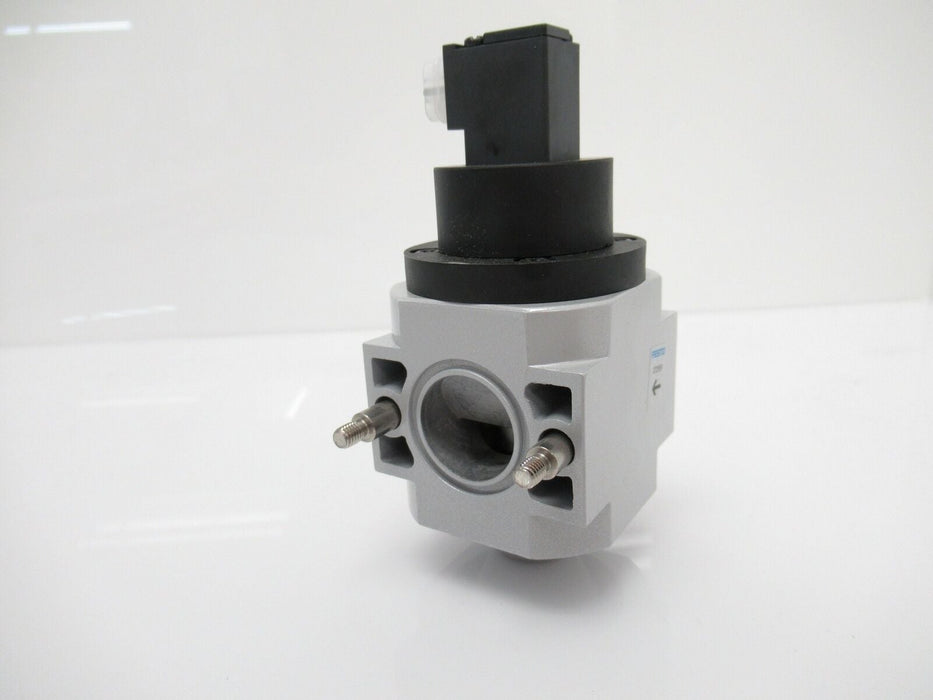

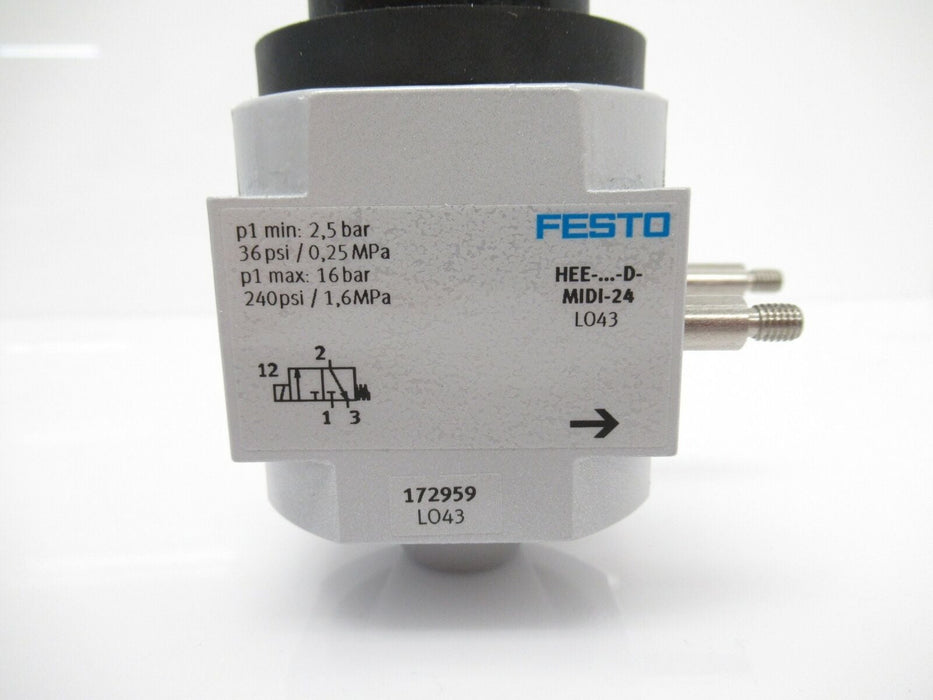

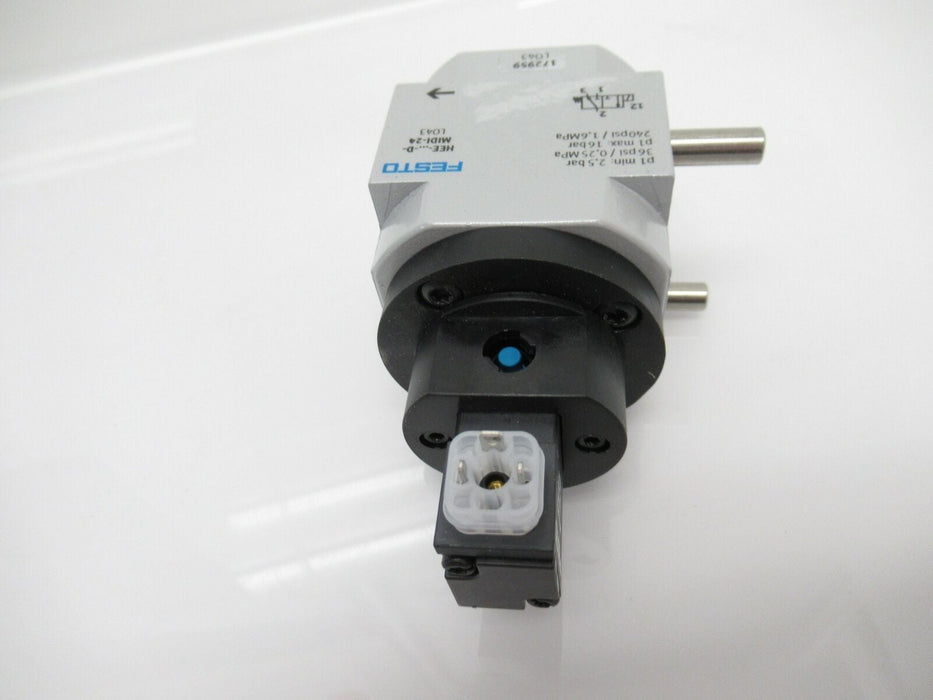

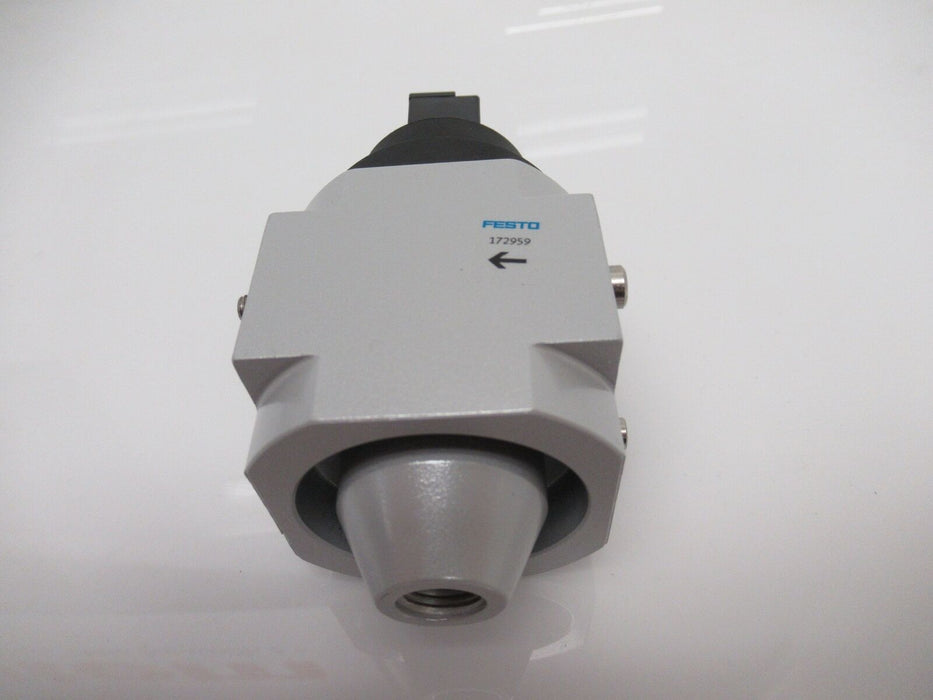

HEE-D-MIDI-24 Festo On-Off/Soft-Start Valves, D Series

172959 HEE-D-MIDI-24 HEEDMIDI24

Festo

On-Off/Soft-Start Valves, D Series

(New In Box)

Data Sheet

• Design Structure: Piston Slide
• Type Of Actuation: Electrical
• Sealing Principle: Soft
• Exhaust-Air Function Not Throttleable
• Manual Override: Detenting
• Type Of Reset: Mechanical Spring
• Type Of Piloting: Piloted
• Valve Function: 3/2 Closed, Monostable
• Operating Pressure: 2.5 ... 16 bar
• Duty Cycle: 100 %

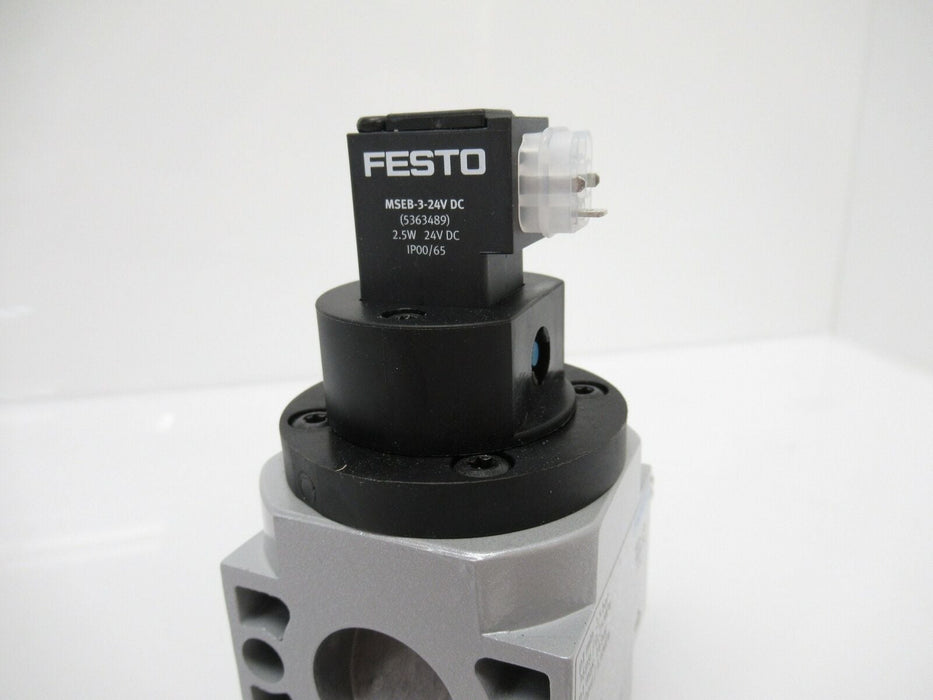

• Characteristic Coil Data: 24 V DC: 3 W
• Permissible Voltage Fluctuation: +/- 10 %
• Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4] Inert Gases
• Note On Operating And Pilot Medium: Lubricated Operation Possible (Subsequently Required For Further Operation)
• Corrosion Resistance Classification CRC: 2 - Moderate Corrosion Stress
• Materials Note: Conforms To RoHS
• Medium Temperature: -10 ... 60 °C
• Ambient Temperature: -10 ... 60 °C
• Maritime Classification: See Certificate
• Mounting Type: Line Installation With Accessories
• Assembly Position: Any
• Flow Direction: Non Reversible
• Product Weight: 500 G

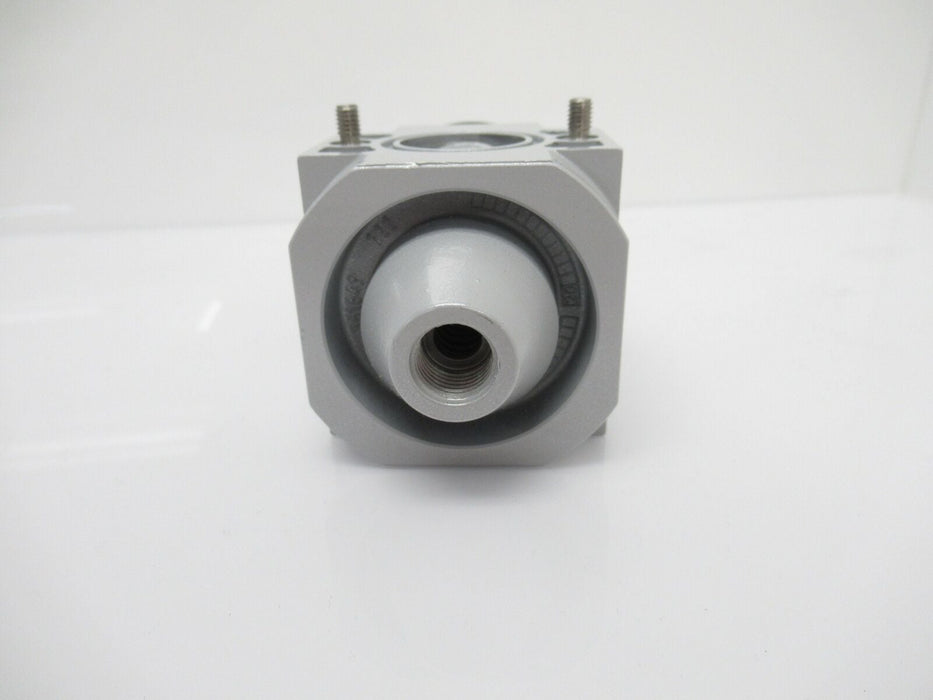

• Pneumatic Connection, Port 3: G1/4
• Air Purity Class At Output: Compressed Air In Accordance With Iso8573-1:2010 [7:4:4] Inert Gases
• Electrical Connection: Plug Pattern Type C To En 175301-803, Plug, Per Din En 175301-803
• Material Seals: NBR
• Material Housing: Aluminium Die Cast
