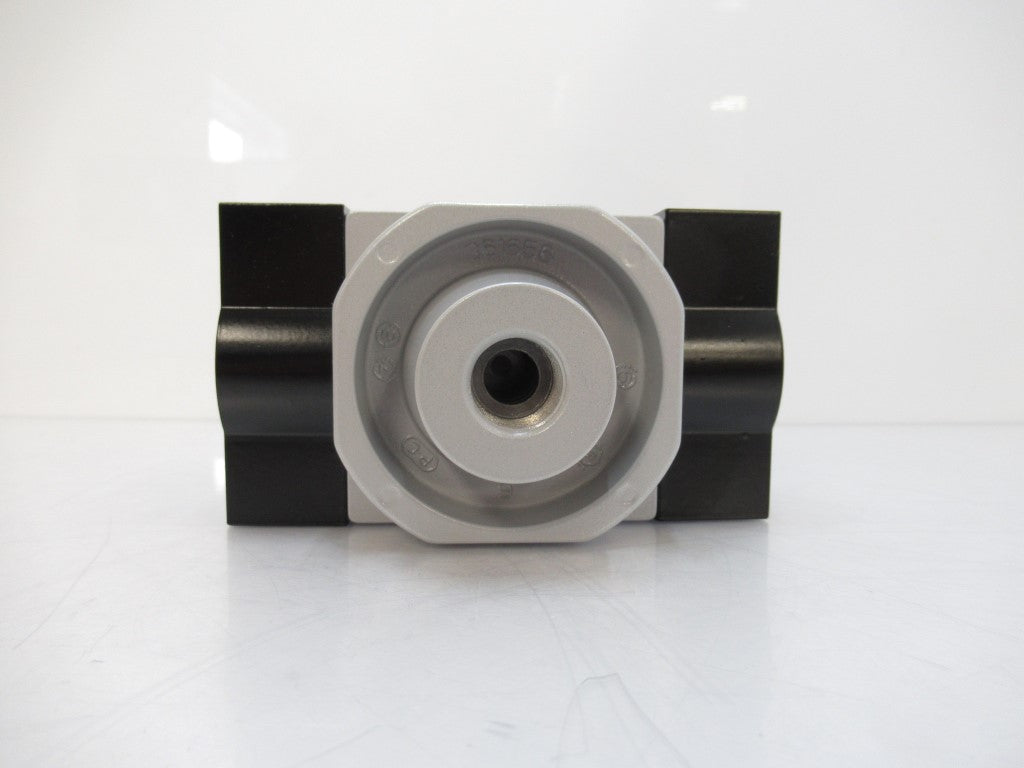

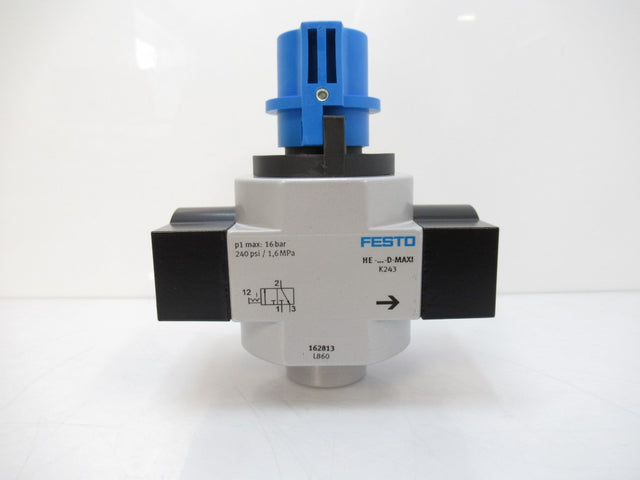

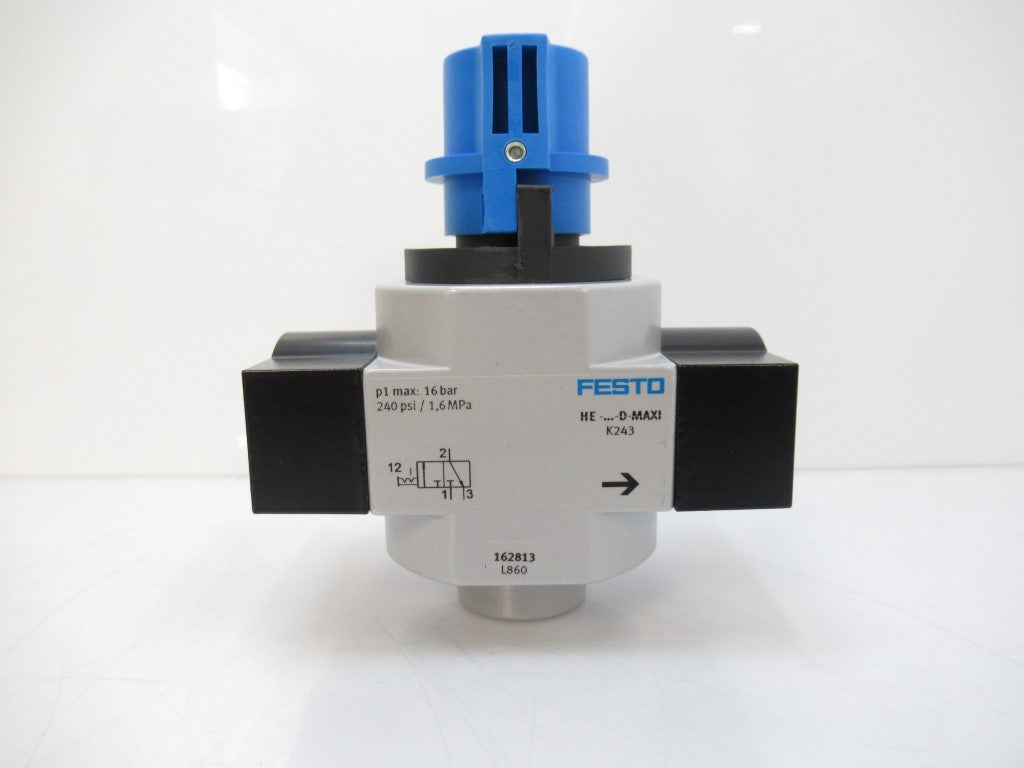

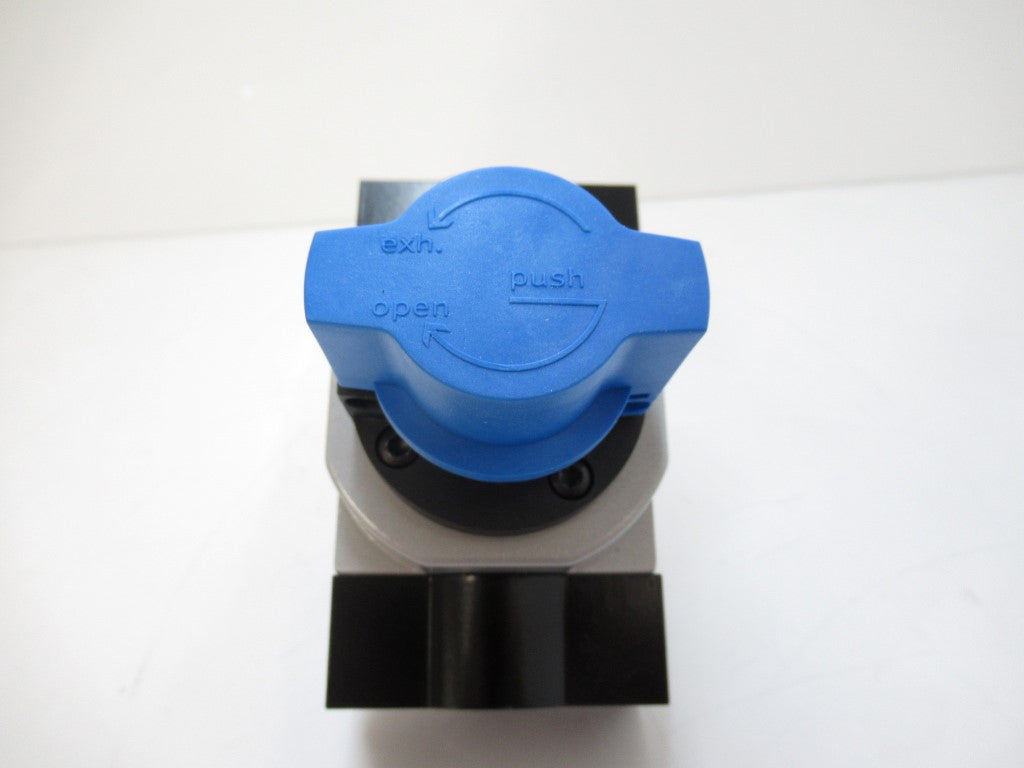

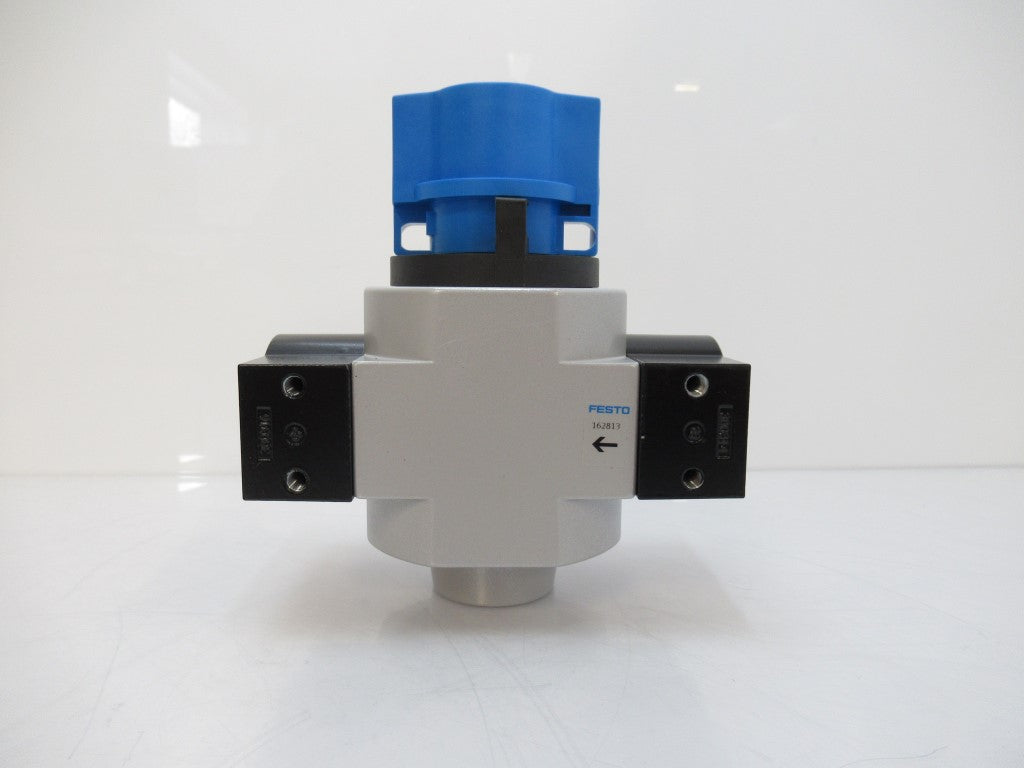

162813 HE-1-D-MAXI Festo On-Off/Soft-Start Valves, D Series

by Festo
$135.86 USD
FACTORY SUPPLY BRAND NEW
SKU VAL-0061-E
UPC: HE-1-D-MAXI
Only 1000 left!
-
+

This product is in shipment and will be arriving shortly. Enter your email below to be notified of its arrival.

162813 HE-1-D-MAXI HE1DMAXI

Festo

On-Off/Soft-Start Valves, D Series

(New In Box)

Data Sheet

  • Design Structure: Piston Slide
  • Type Of Actuation: Manual
  • Sealing Principle: Soft
  • Exhaust-Air Function: Not Throttleable
  • Manual Override: None
  • Valve Function: 3/2 Bistable
  • Operating Pressure: 0 ... 16 bar
  • C Value: 25.9 L/s bar
  • B Value: 0.37
  • Standard Nominal Flow Rate: 6,500 L/Min
  • Operating Medium: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4] Inert Gases
  • Note On Operating And Pilot Medium: Lubricated Operation Possible (Subsequently Required For Further Operation)
  • Corrosion Resistance Classification CRC: 2 - Moderate Corrosion Stress
  • Materials Note: Conforms To RoHS
  • Medium Temperature: -10 ... 60 °C
  • Ambient Temperature: -10 ... 60 °C
  • Maritime Classification: See Certificate
  • Mounting Type: Line Installation With Accessories
  • Assembly Position: Any
  • Flow Direction: Non Reversible
  • Product Weight: 796 G

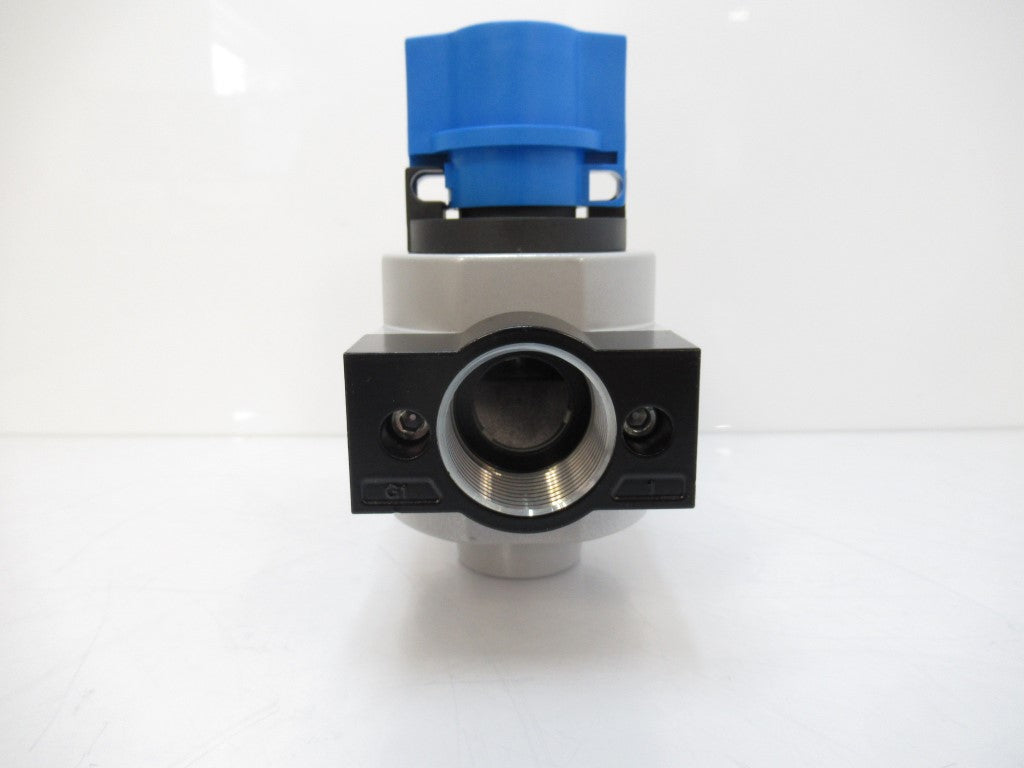

  • Pneumatic Connection, Port 1: G1
  • Pneumatic Connection, Port 2: G1
  • Pneumatic Connection, Port 3: G3/8
  • Air Purity Class At Output: Compressed Air In Accordance With ISO8573-1:2010 [7:4:4] Inert Gases
  • Material Seals: NBR
  • Material Housing: Aluminium Die Cast
