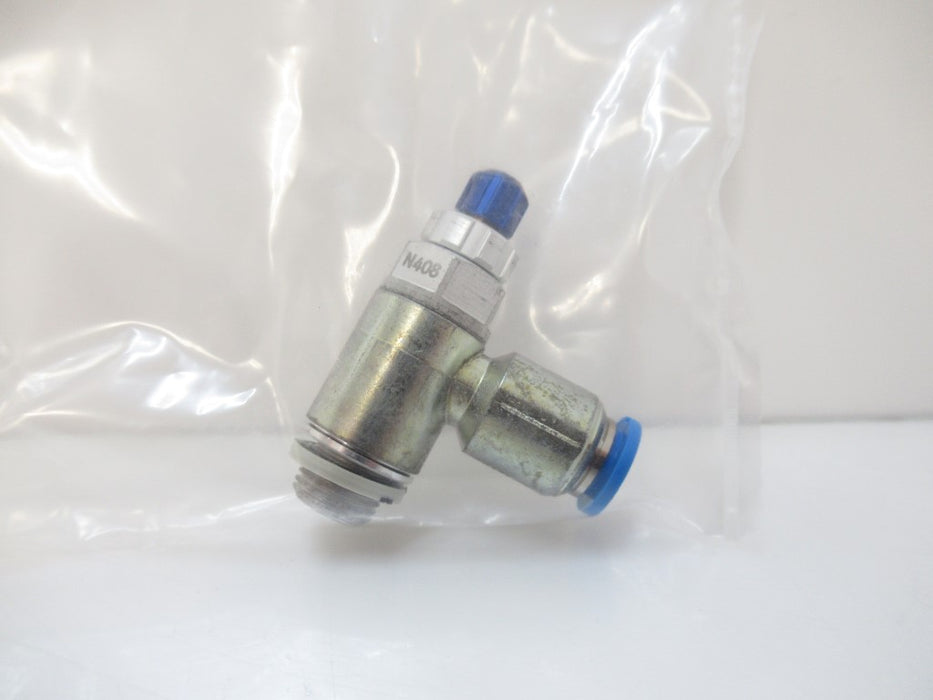

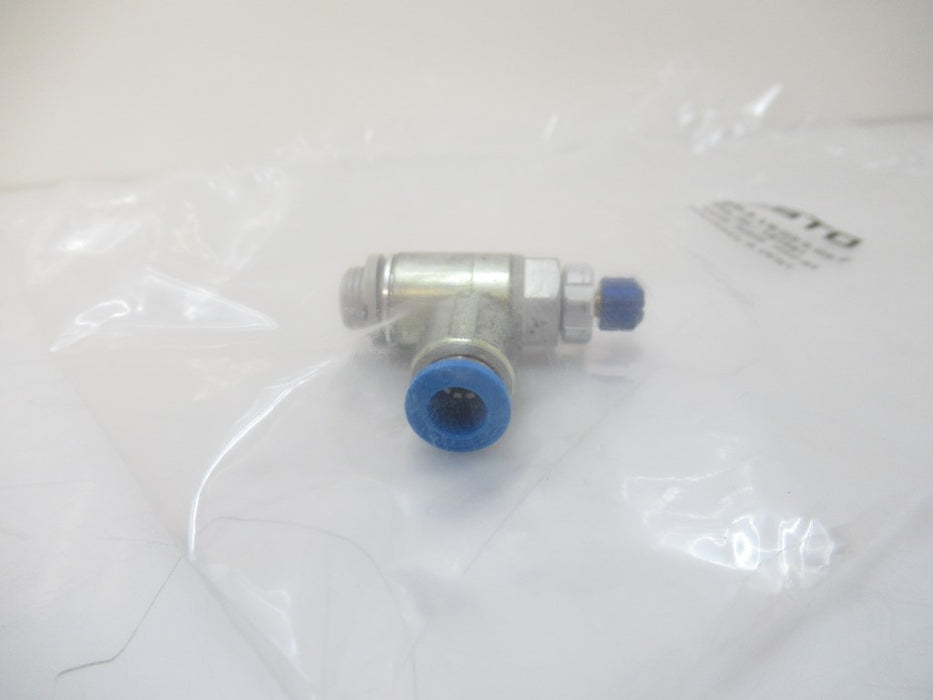

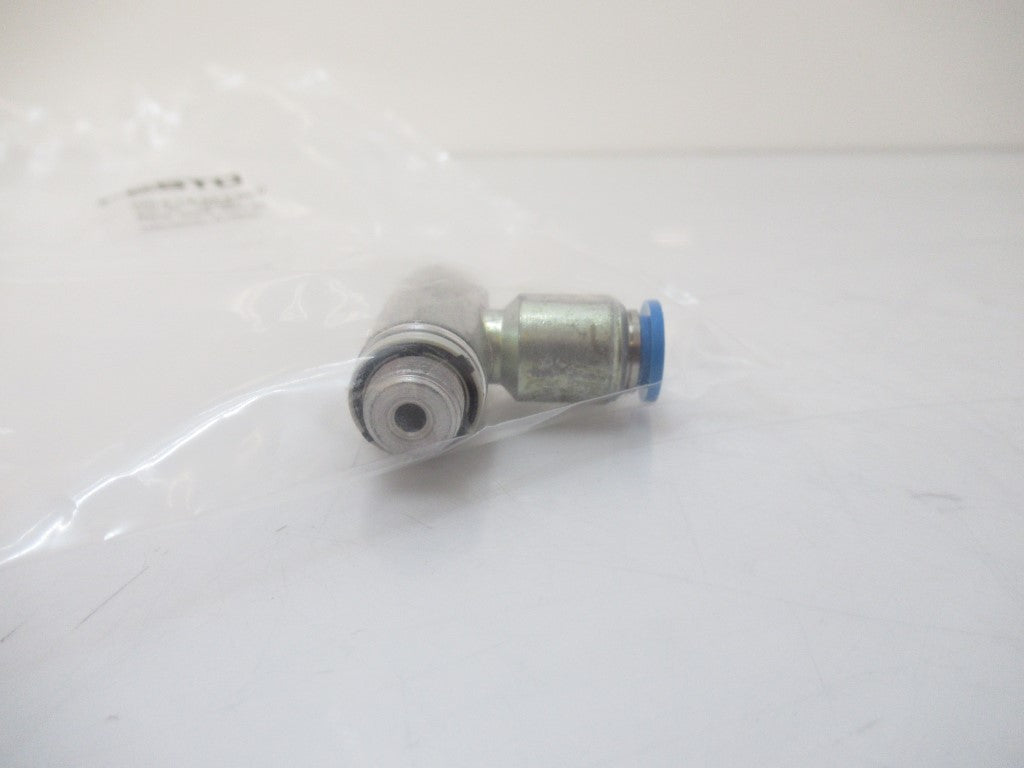

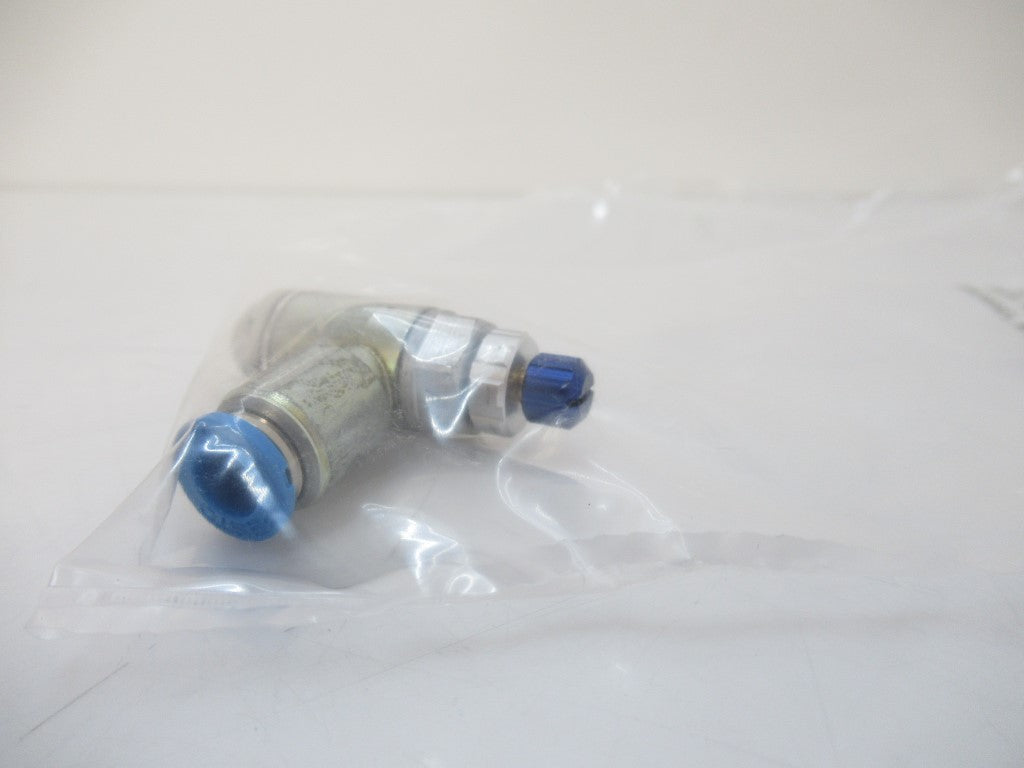

197581 Festo GRLA-1/8-QS-6-RS-D One-Way Flow Control Valve

197581 GRLA-1/8-QS-6-RS-D GRLA18QS6RSD

Festo

One-way Flow Control Valve

New In Bag

Description

• Valve Function: Exhaust Air Flow Control Non-Return Function
• Pneumatic Connection 1: QS-6
• Pneumatic Connection 2: G1/8
• Adjusting Element: Knurled Screw
• Type Of Mounting: Screw-In
• Material Of Adjusting Screw: High-Alloy Stainless Steel
• Swivel Joint Material: Die-Cast Zinc Chromated
• Note On Materials: RoHS-Compliant
• Seals Material: NBR
• Releasing Ring Material: POM
• Operating Medium: Compressed Air As Per ISO 8573-1:2010 [7:4:4]
• Standard Flow Rate In Non-Return Direction At 6 -> 0 bar: 370 l/min
• Operating Pressure For Entire Temperature Range: 0.2 bar ... 10 bar
• Maritime Classification: See Certificate
• Standard Nominal Flow Rate In Flow Control Direction: 185 l/min
• Standard Nominal Flow Rate In Non-Return Direction: 160 l/min ... 240 l/min
• Operating Pressure: 0.2 bar ... 10 bar
